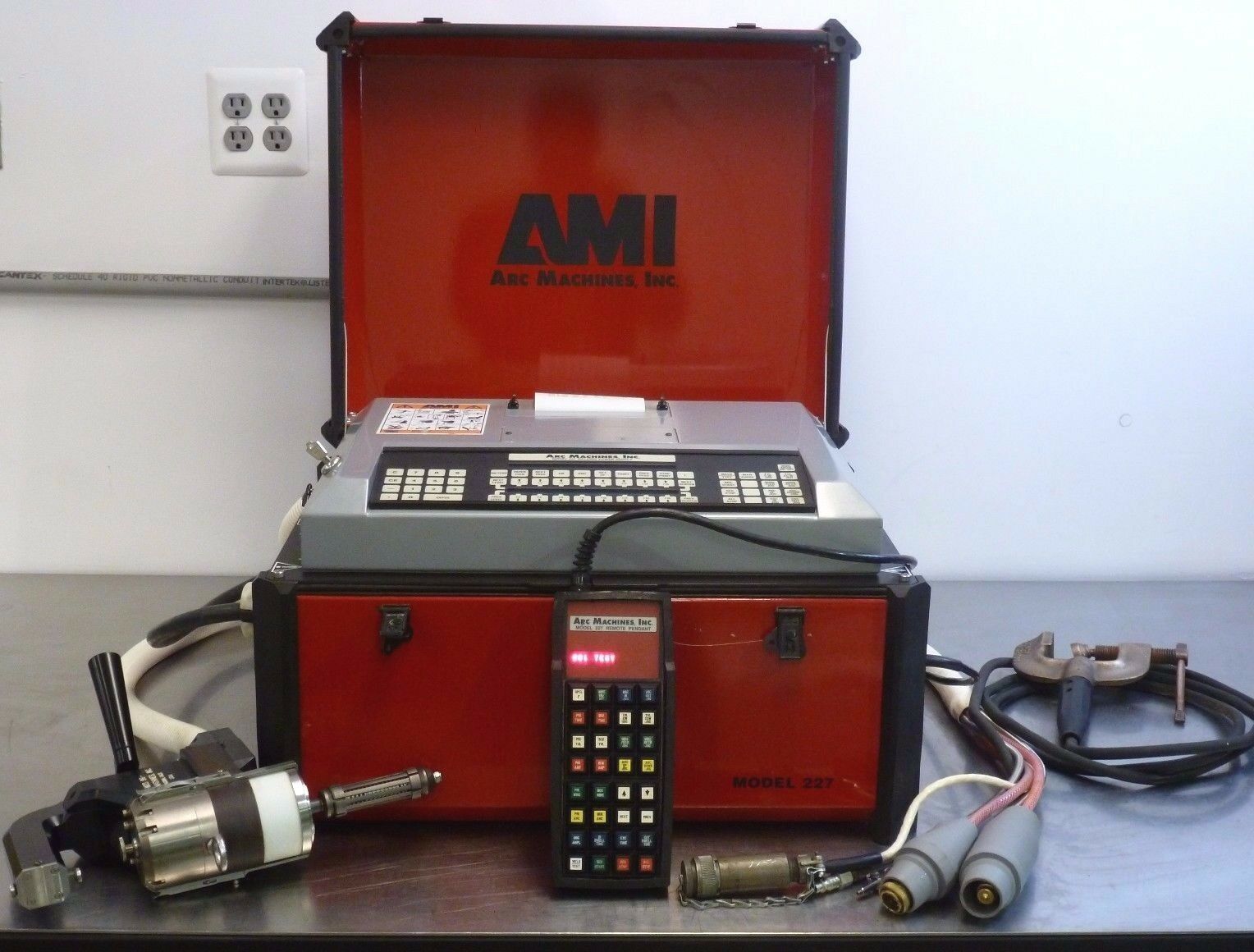

AMI 227 Welding Power Supply W/ Remote Pendant
AMI Model 96 Tubesheet Weld Head W/ 15 Ft Adaptor
Weld Head comes with: 2″ 1″ 5/8″ 3/8″ Collets andamp; Extra pieces (See Photos)
Fully Tested and functional
The Model 96 is an automated weld head designed for high-speed high-production autogenous welding of tubes to tubesheet. Welds made with this head utilizing the GTAW (TIG) welding process can pass the most rigid specifications.
The weld head is held in place on the tube to be welded by an expanding mandrel. This mandrel is actuated by a single button conveniently located in the handle. Actuation of the mandrel holds the weld head firmly to the tubesheet and positions the torch concentric to the tube to be welded. The Model 96 features a completely enclosed purge chamber. The gas chamber eliminates the use of gas cups and provides superior shielding for materials which oxidize easily such as titanium.
· Rugged reliable tube-to-tubesheet weld head suited for high-production applications
· Makes autogenous GTAW (TIG) welds on flush or slightly projected tubes.
· Single or multi-pass welds
· Self-supporting on tubesheet pneumatically operated
· One-button operation quick mount and dismount
· Welds in any position including overhead
The Model 227 is a 100/225 A pre-programmed / programmable inverter-type GTAW welding power supply and controller designed for (but not limited to) automatic orbital welding applications that require the addition of filler material.
Welds produced by this machine together with Arc Machines’ weld heads meet or exceed the specifications required by industries as diverse as: food dairy brewery pharmaceutical power generation petrochemical chemical pulp and paper nuclear shipbuilding etc. Its small size and rugged casing makes it useful in field applications where portability is required. High-integrity code-quality welds are easily reproduced at the touch
of a button.
· Internal memory for up to 100 multi-level multi-function weld schedules
· 8 multi-level functions for total process control
· Programmable continuous or pulsed current rotation wire feed oscillation and AVC 100 levels per pass
· Dust/moisture-proof stoft-touch membrane switches
· Standard software prompts in multiple languages
· Built-in high speed printer
· Off-line programming option available (PC Compatible)
· Key-switch to limit operator access
· Standard remote operator’s pendant
· Optional water cooling unit
· Optional external memory module
