Clausing Colchester 13”/18″ x 25” Gap Bed Geared Head Lathe Model 8026J 3 Phase

Clausing Colchester 13”/18.8″ x 25” Gap Bed Geared Head Engine Lathe Model 8026J 3 Phase (230v or 460v)

This Engine Lathe Comes With A 1 Year Complete Warranty

Specifications:
Work Capacity:
Height of center 6.5”
Swing over bed 13”
Swing in gap 18.8”
Width in front of faceplate 4.5”
Swing over cross slide 8.26”
Bedway width 12.5”

HeadStock:
Spindle bore 1.5”
Spindle nose (camlock) D1-4
Spindle nose taper 3MT
Number of spindle speeds 12
Spindle Speed Range (rpm) 40-2500
Cross/Top Slide Travel of cross slide 7.5”
Width of cross slide 5.5”
Travel of top slide 3.63”
Width of top slide 3.25”

TailStock:
Quill travel 4.38”
Quill diameter 1.63”
Quill taper 3MT

Feeds andamp; Threading:
Longitudinal feed range 0.001”-.039” in/rev
Number of inch pitches 35
Range of inch pitches 2-56 TPI
Number of metric pitches 39
Range of metric pitches 0.2-14mm
Number of diametral pitches 18
Range of diametral pitches 8-56 DP
Number of module pitches 18
Range of module pitches 0.3-3.5 MOD
Motor Spindle motor 3 hp

Dimension:
Swing/Swing in Gap andamp; Center Distance 13”/18.8″ x 25” G/H Gap
Length x Height x Width 67” x 58” x 37”
Weight 1680 lbs.

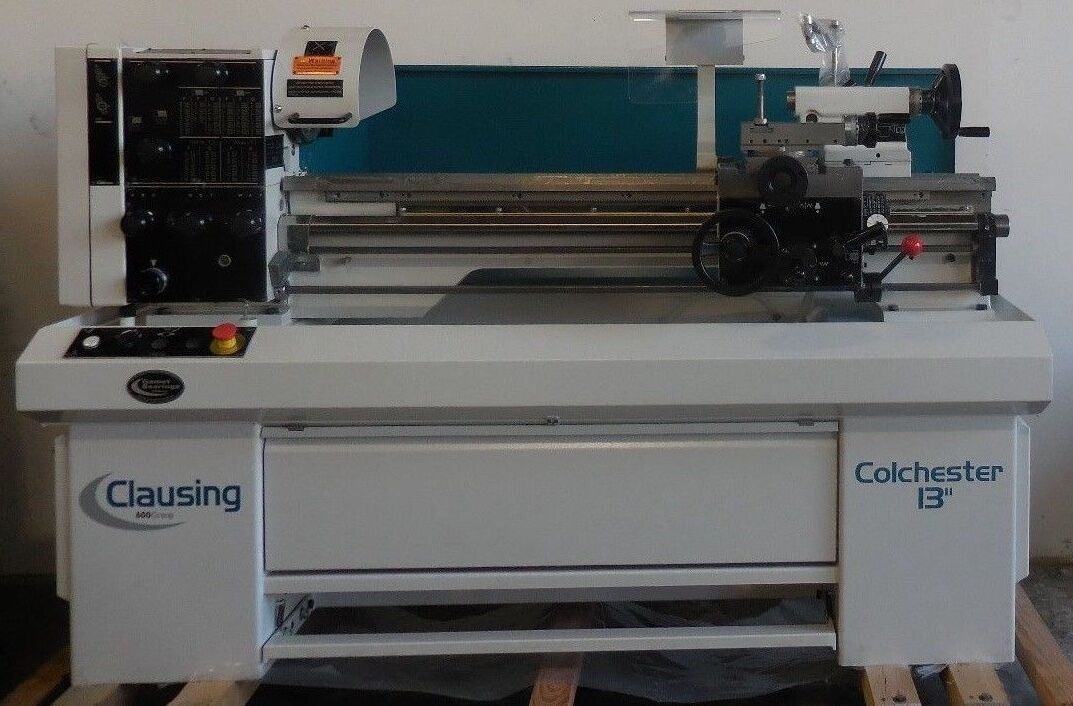

Comes as shown in pictures.

Standard Equipment:
Center Bushing
· Two 3MT Centers
· Inch Threading Dial
· Accuracy Chart
· Parts and Instruction Manuals
· Splash Guard
· Coolant System
· Set of Wrenches and Keys
230/460 volt 3 phase 60 hz. Motor (specify voltage)

Optional Accessories:
10” Telescopic Taper Attachment
4-Way Turret Tool Post
12” Slotted Face Plates
18” Slotted Face Plates
Live Center
Drive Plates
Bronze Tip Steady Rest 3/8” to 5-1/2”
Bronze Tip Follower Rest 3/8” to 3”
5C Ft. Mount Handwheel Collet Chucks
Individual 5C Round Collet Inch
Individual 5C Round Collet Metric
1/8”-1 1/16” by 64ths (inch set)
1/8”-1 1/16” by 32nds (inch set)
1/8”-1 1/16” by 16ths (inch set)
1/8”-1” by 8ths (inch set)
3mm-27mm by .5mm (metric set)
3mm-27mm by 1mm (metric set)
18pc 5C Collet Rack
Aloris Quick Change Tool Post w/4 Holders (BXA)
Aloris Extra Standard Holder 5/8” (BXA)
Aloris Extra V-Holder 5/8” 1/2” bore bar (BXA)
Aloris 3/4” Boring Bar Holder (BXA)
Aloris Extra 2MT Holder (BXA)
Aloris Cutoff Holder 1.5” height (BXA)
Aloris Cutoff Blades Self-Locking 1/8” wide (BXA)
Five-Position Carriage Stop – Requires One Position
or Micro Carriage Stop – (Sold Separately)
One-Position Carriage Stop
Micro Position Carriage Stop
6” 3-Jaw Setrite Universal Scroll Chuck
8” 3-Jaw Setrite Universal Scroll Chuck
6” 6-Jaw Setrite Universal Scroll Chuck
8” 6-Jaw Setrite Universal Scroll Chuck
8” 4-Jaw Independent Chuck
10” 4-Jaw Independent Chuck
2 Axis Acu-Rite LED DRO
2 Axis Acu-Rite 200S DRO
2 Axis Acu-Rite 300S Color DRO
2 Axis Acu-Rite 300S DRO Color w/Thread Assist
2 Axis Fagor Color DRO
2 Axis Fagor LED DRO
2 Axis Newall DRO
