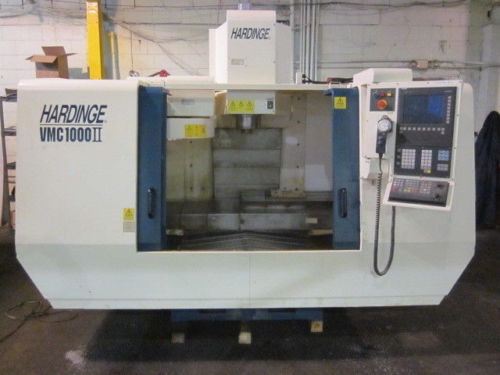

This is an INCREDIBLY CLEAN Hardinge VMC 1000-II. It features the Siemens 810 Controller. It looks to have been barely used to cut plastic and wood. The only evidence of cutting is wood dust and black abs plastic. The paint inside is flawless. The machine powers up though appears to have lost its parameters. Purchaser would need to have SIemens help with starting it up.
Description
YEAR OF MANUFACTURE 2001
TABLE SIZE (2) 44″ x 20″
MAXIMUM TABLE LOAD 1540 LBS
SPINDLE NOSE TO TABLE TOP 6.1″ – 26.1″
X AXIS TRAVEL 40.2″
Y AXIS TRAVEL 20.1″
Z AXIS TRAVEL 20.1″
RAPID TRAVERSE RATE ALL AXIS 1181 IPM
CUTTING FEED RATE 0.1 – 500 IPM
SPINDLE TAPER 40 Taper
SPINDLE SPEEDS 0 – 8000 RPM
SPINDLE MOTOR 22 HP
TOOL CHANGER CAPACITY (SIDE MOUNT) 24 STATIONS
TOOL CHANGE TIME 2.5 SEC. BIDIRECTIONAL
MACHINE WEIGHT APPROX. 15000 LBS
DIMENSIONS APPROXIMATELY 124″ x 86″ x 106″
