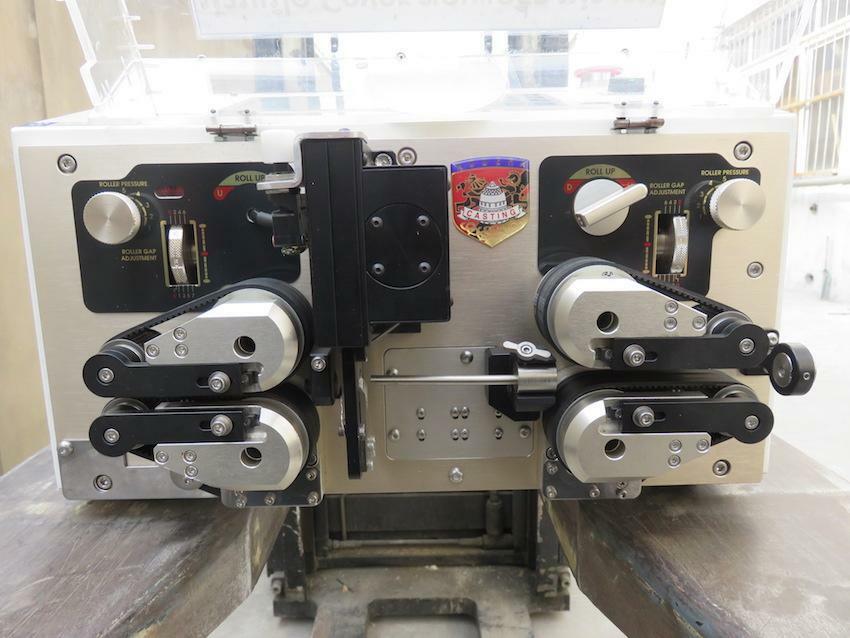

Based on C371A we’ve actualized the stable length measurement by performing the wire feeding with belt feed system.
It can grasp the face of the wire whose surface is unlevel which is often seen on shield wire.
MODEL C381A
OUTER DIMENSIONS W430mm ×D420mm ×H270mm
WEIGHT 27kg
POWER SUPPLY AC100V~AC240V(Single phase)50Hz/60Hz
POWER CONSUMPTION(100V) 47W(Rated)215W(Max)
CUTTING LENGTH 0.1mm~99999mm
CUTTING TOLERANCES ±( 0.1 0.0005×L )mm?2 L:indicates a cutting length.
STRIPPING LENGTH FRONT END 0.1~47.9mm
REAR END 0.1~47.9mm
APPLICABLE WIRES TYPE AVSSVSF IV KV ULTeflon Glass Wire etc
SIZE AWG#7(10sq)~AWG#28(0.08sq)?2
O.D. Max f11mm?2
WIRE FEED SPEED Variable
CUTTER MATERIAL Ultra fine particle alloy
DRIVE SUPPLY Stepping pulse motor
