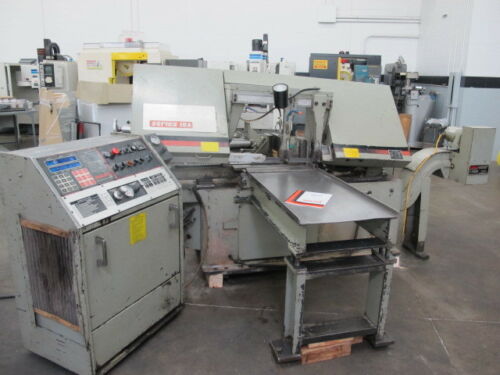

Marvel 15A9PC Programmable Automatic Horizontal Band Saw

Marvel 15A9PC Programmable Automatic Horizontal Band Saw

Round Work Capacity: 16″
Square Work Capacity: 16″ x 20″
Max Blade Size: 1.25″ x .050″ x 15’6″
Blade Wheel Diameter: 23″
Blade Speeds: Variable Speed 55-400 FPM
Blade Feed Force: Variable
Stock Feed Shuttle Travel: 24″ Stroke (Once Cycle) 999.99″ Max Single Cut
Feed Table Load Capacity: 14000 Lbs.
Drive Motor: 7.5 HP

Equipped with: Marvel PCII Programmable Controller 99 Job Storage 1-99 Steps Per Job 0-999.999″ Max Length Stock Feed Per Cut Cycle 21″ x 43″ Discharge Table Turbo Lift Up Chip Conveyor Additional 125″ Conveyor In Base Coolant System. Marvel PCII Control Manuals.

Approx. Dimensions: 116″L x 68″W x 58″H

Approx. Weight: 6000 lbs.
