Micro Automation Dicing Saw MA1100Wafer saw Silicon Saw

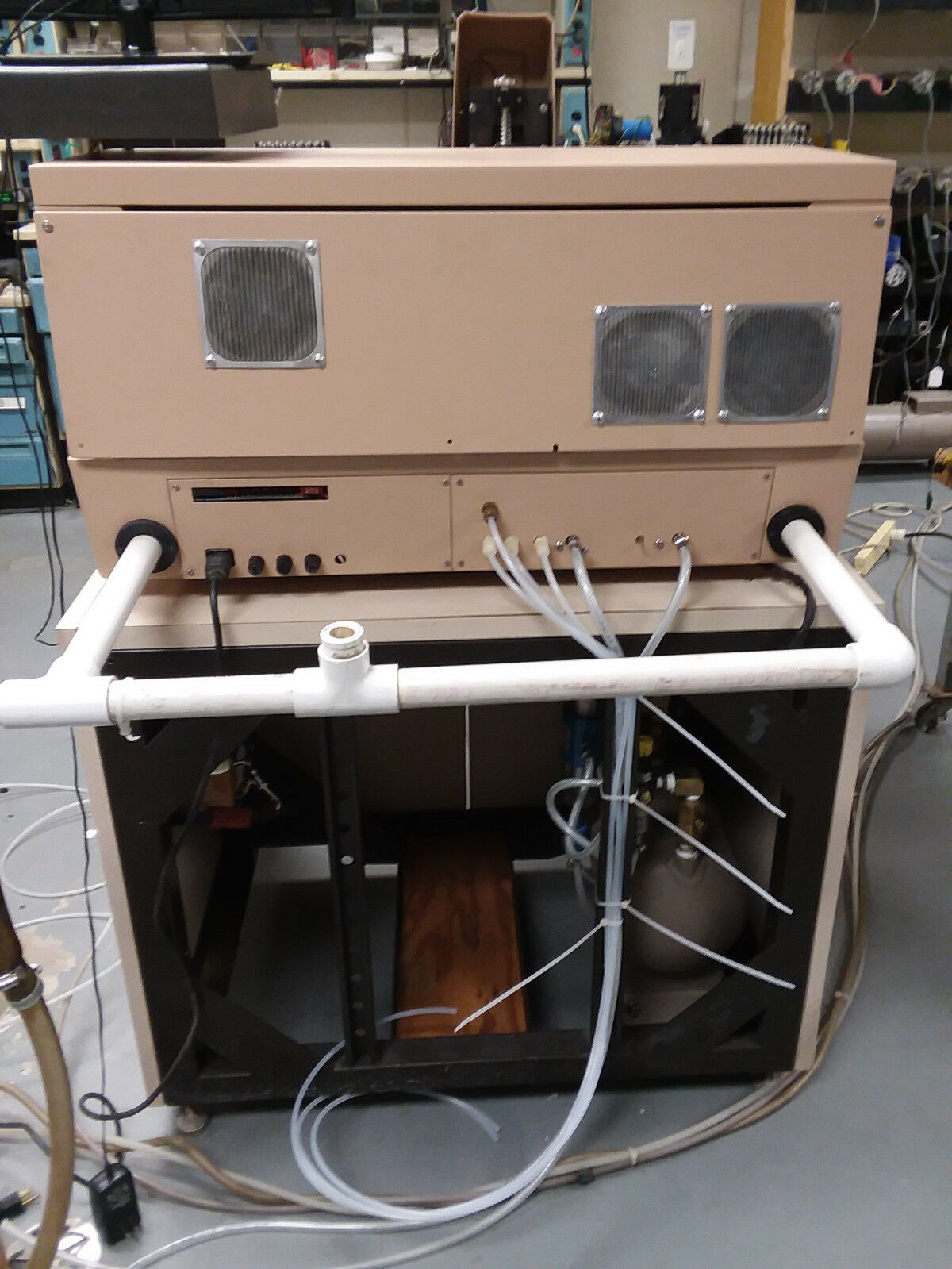

Up for sale is a refurbished Micro Automation Dicing Saw MA1100

1. The MA1100 dicing saw has been refurbished to its original manufacture specifications

2. Upgrades done to the MA1100 Dicing saw

* Color camera
* 19″ flat screen color monitor
* New total interactive spindle drive
* New hairline generator

3. Parts that were installed New or rebuilt

* Spindle was rebuilt
* New program and control panel
* New bearings installed in all axis
* New paint
* New plumbing

4. Capability

* Store up to 60 standard Programs
* built in measurement function system
* Spindle speed can be programmed from 15000 to 40000 RPMS
* Height range .500 inch
* Cutting depth range 0.0001 to 0.185 inch (blade limited)
* X cutting range 0.0 to 6 inches
* X cutting rate 0.005 to 12 inches/second
* Y position range 0.0 to 6 inches
* Y linearity is electronically correctable

5. Micro Automation dicing saw Support (Contact us for a quote)

* provide installation of the saw within the U.S. and Canada
* Provide on site service within the U.S. and Canada
* Board repair or Board Exchange
* Parts
