Plasma MKS 750W Generator and AE 1013-L35Z Matching network with laptop

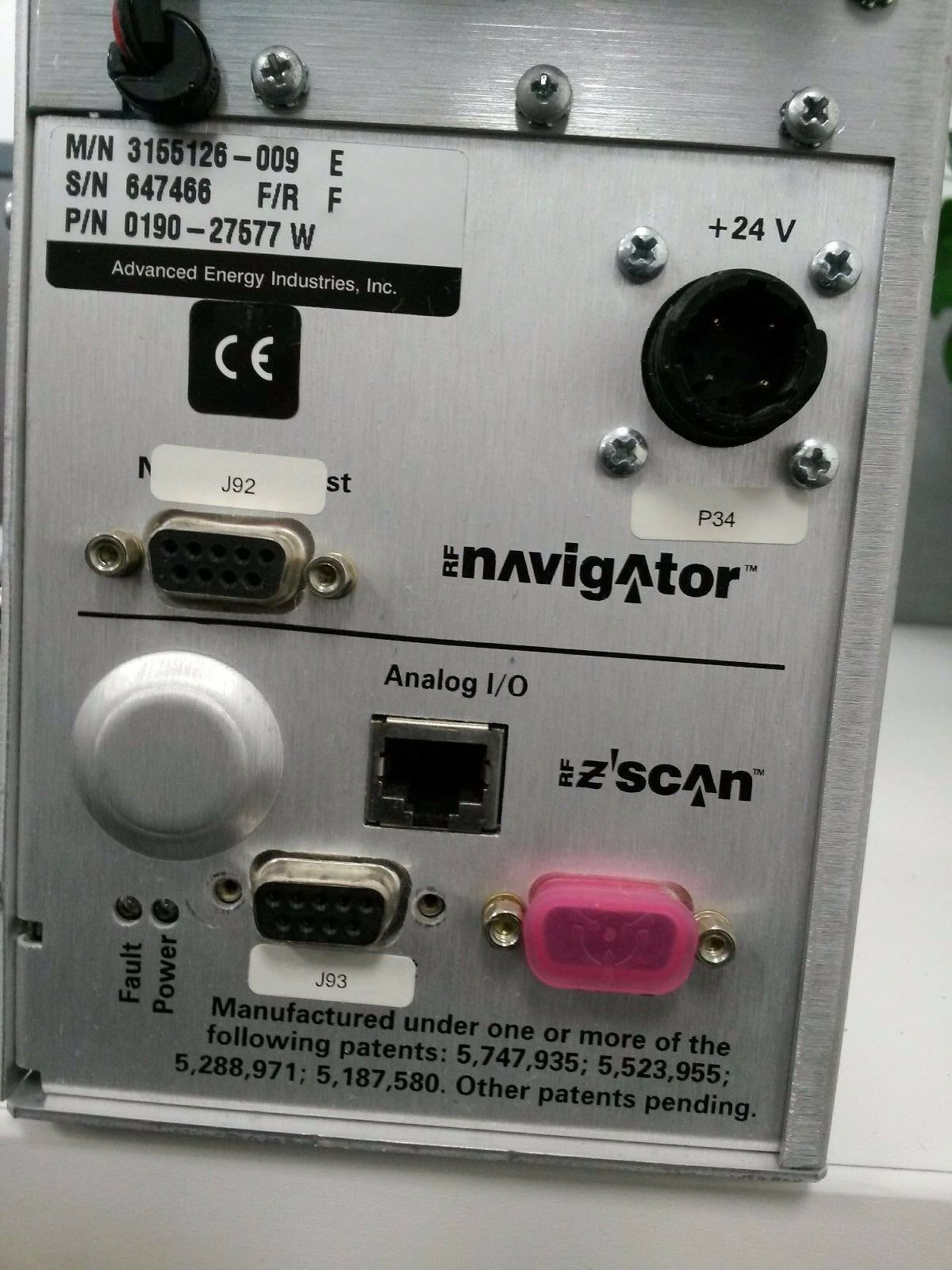

Elite 750W RF Plasma Generator (air cooled) and an Advanced Energy Navigator 1013-L35Z Plasma Matching Network with its controlling laptop

Generator

· Single phase AC input (110V) allows easy setup

· Air cooled for ease of setup and operation – no water hookup or chillers are needed (garage compatible)

o One of the largest air-cooled power rf generators available.

· Can monitor reflected power on built in LCD display

o No complicated external control needed

· Pulsing from 1 to 1kHz frequency with a 1 to 99% d.c

· A high efficiency DC to RF of andgt;85%

· A half rack enclosure can be used in direct tool mounting

· Use a controlling RS232 connection if needed.

Search for “elite-DS.pdf” spec sheet for further details

Match

· 1013 series AE Match

· Automatic tune/ impedance matching

· RF input – Type HN female

· 5.5 Kg (12 lb)

· 34.3 cm x 20.9 cm x 10.5 cm

· Includes internal Z’ Scan system with Z’ Scan RF sensor

o Z’ Ware software allows you to monitor control and collect various RF parameters (included)

· 24 VDC input 2.5 A max

· 3 kV maximum at 13.56 MHz

· 35 ARMS

(pictures might be a representative photo of the unit sent and not the exact one since multiple quantities are in stock)

What Is Included:

(3 main items)
1 – Elite 750FA-11063 rf power supply
1 – 110V AC power cord for the elite generator
1 – Navigator 1013-L35Z Plasma Matching Network (needs a 24V power supply)
1 – Acer One D270-1410 Laptop with AE Navigator VFP software on it to control the Navigator matching network (needs a USB cable to male D-sub 9 pin cable).
1 – Acer One D270-1410 Laptop power cord.
