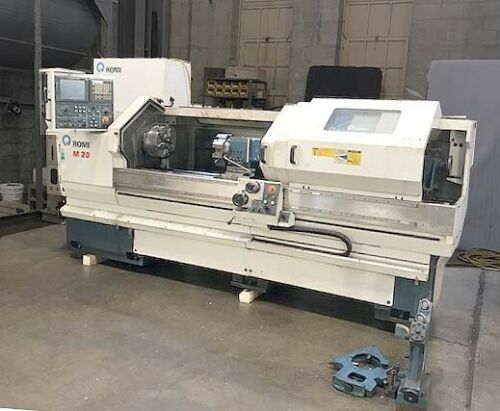

Romi M20 20″ x 80″ Flat Bed CNC Lathe with Fanuc 21i CNC Control

ROMI M20 FLAT BED CNC/MANUAL LATHE
Model M20 New 2006

EQUIPPED WITH:
Fanuc 21i-T CNC Control with Manual Guidance Conversational G-Code and
Teach Modes (2) MPG Handwheels for Manual Operation
Inch/Metric Programming RS-232 Port Variable Speed Spindle Between
(2) Gear Ranges Programmable Constant Surface Speed 8 Position Tool Turret
12″ 6-Jaw Chuck Tailstock with Manual Quill (2) Steady Rest Follow Rest
Chip Conveyor Coolant Pump and Tank.

CATALOGUE SPECIFICATIONS:
Max Swing Over Bed……………………………….. 20.6″
Max Swing Over Carriage…………………………… 10.2″
Max Tailstock Position……………………………. 87.73″
Max Machinable Center Distance…………………….. 80″
Feed Range (Infinitely Variable)…………………… .1-394 IPM
Longitudinal Travel ……………………………… 80.78″
Cross Travel…………………………………….. 11.17″
Spindle Bore…………………………………….. 3″
Spindle Nose…………………………………….. A2-8
Spindle Speed Range (1 RPM Increments)……………… 2-2000 RPM
Spindle Horsepower……………………………….. 15 HP
Tailstock Center………………………………….. #4MT
Electrics……………………………………….. 230/3/60
Approximate Machine Dimensions…………………….. 154″ x 78″
Approximate Machine Height………………………… 78″
Approximate Machine Weight………………………… 8900 LBS

CONDITION: Machine Appears to be in Very Good Condition !!
