NeoDen4 is a flexible pick and place machine for all types of production.
With placement rates of 10000 cph up to 48 feeder slots auto rails and electronic feeders users can move from prototype into production on the same machine saving programming and job setup time.
It is a compact placing machine that offers the flexibility (component flexibility PCB flexibility and production flexibility) and speed to meet the demands of an ever-changing market.
Features
1. Dual vision system (up-looking and down-looking cameras) identify and calibrate the different components at one time improves the
accuracy of placement from 0201 to BGA;
2. Auto rails help to achieve continuous placement and solve the problem of long LED bar ex. 1.5m LED bar;
3. Automatic electric feeders reduce the feeding deviation;

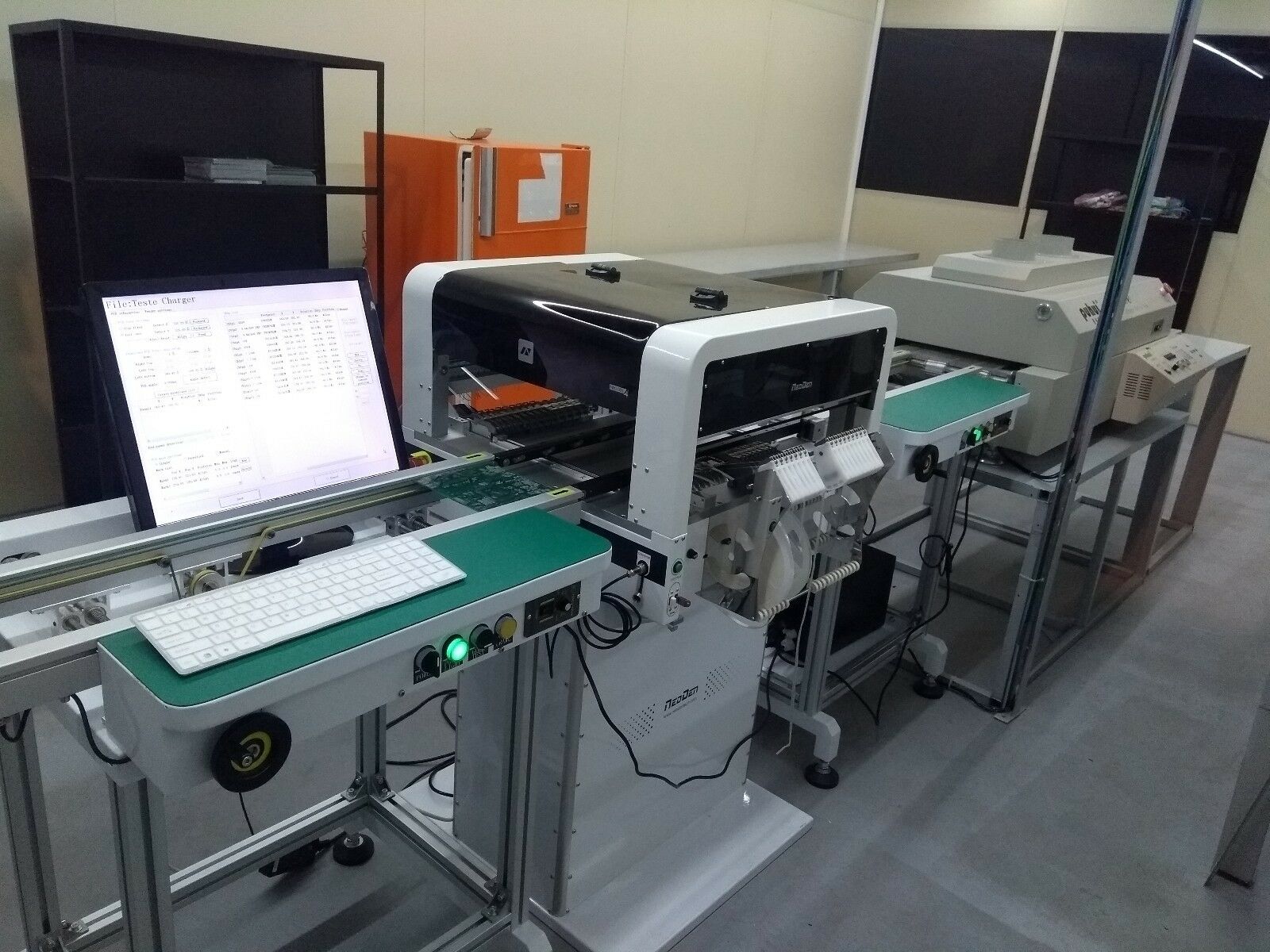

4. General conveyor is supported so a SMT production line can be setup which is more time-saving and labor-saving;
5. Four placement heads can pick up and calibrate components at one time.
6. The device supports remote system upgrade NeoDen provides a life long system upgrade service for free to you;
Specification
Model
NeoDen4
Machine style
Single gantry with 4 heads
Alignment
Stage Vision
Placement Rate
Vision on
5000CPH
Vision off
10000CPH(Optimum)
Feeder Capacity
Tape feeder:48(all 8mm)
Vibration feeder:5
Tray feeder:5
Component Range
Smallest Size
0201
Largest Size
32x32mm (Pitch 0.5mm)
Max Height
5mm
Rotation
±180°
Placement Accuracy
±0.02mm
X-Y Repeatability
±0.02mm
Board Dimension(mm)
Maximum
310 x 1500mm
Minimum
350 x 400mm(Option)
140 x1500mm(Option)
Main Control
GUI
Electricity Supply
110V/220V
Power
180W
External Dimensions(mm)
Machine size
870(L)x680(W)x480(H)
Packing size
940(L)x740(W)x600(H)
Weight
Net Weight
60kgs
Gross weight
80kgs
