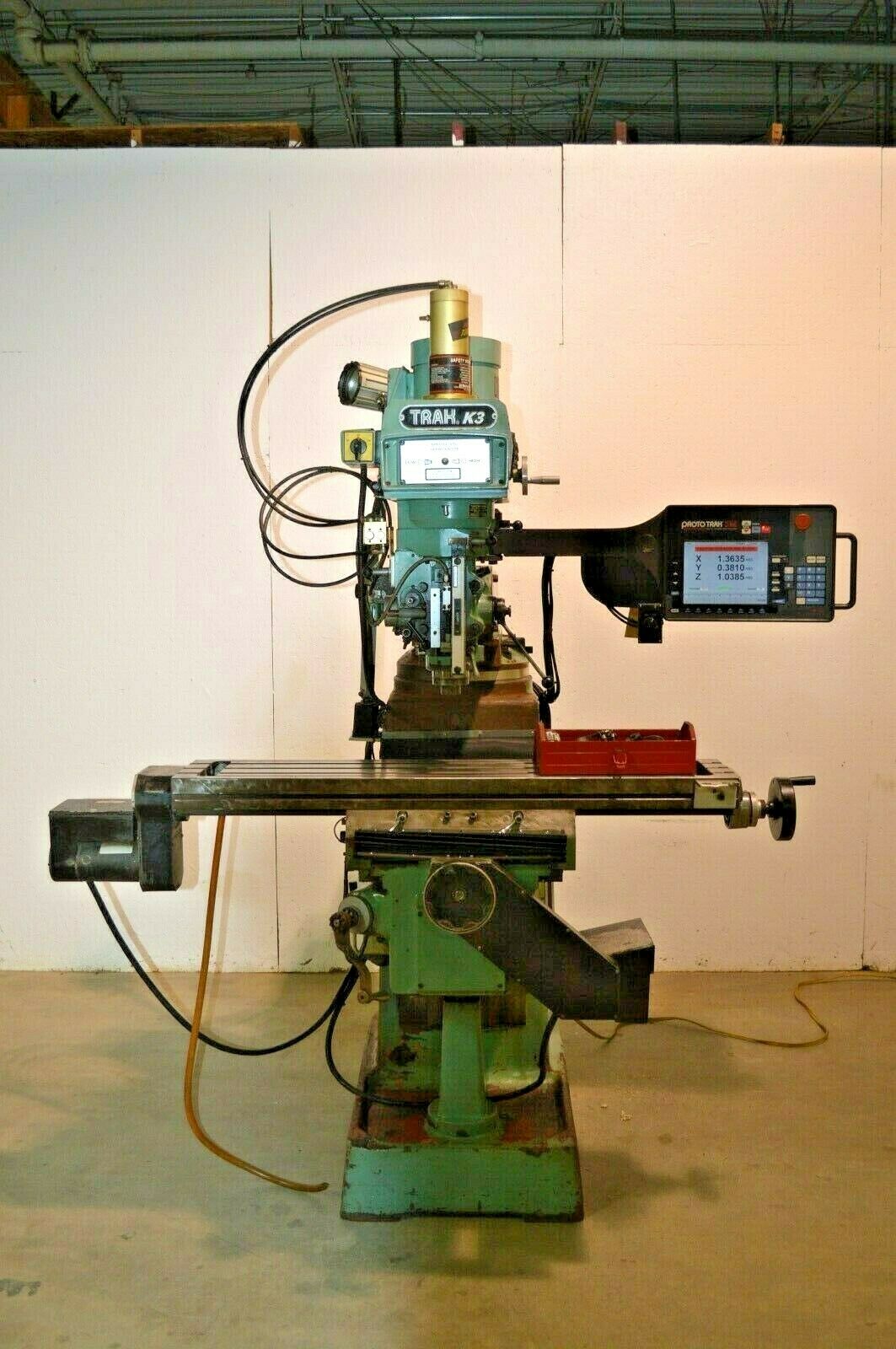

SWI TRAK K3 VERTICAL KNEE TYPE MILLING MACHINE WITH PROTO TRAK SM-2 CNC CONTROL

SPECIFICATIONS:

§ Table Size 50” x 10”

§ Travel:

§ X 32”

§ Y 16 1/2”

§ Z 16 1/2”

§ Maximum Quill Travel 5”

§ Ram Travel 15”

§ Quill Diameter 3-3/8”

§ Spindle Taper R8

§ Spindle Speed Range 60-4200 RPM

§ Head Tilt 90° Left 90° Right

§ Spindle Motor 5 Hp

§ Power Requirement 50Hz/60 Hz

3 Phase

220V/230V Or 440V/460V

§ Maximum Weight On Table 850 lbs.

§ Machine Weight 2816 lbs.

§ Machine Dimensions 71”L x 59”W x 84”H

FEATURES OF SM-2 CONTROL HARDWARE:
§ Pentium Processor With Built-In Video and Ethernet Cards
§ 32 MB of Ram With Expansion Slots Available
§ Flash Drive
§ Teac Floppy Disk Drive
§ Ports and Connectors: P/S 2 Keyboard and Mouse RS232 RJ45
§ 10.4” Color Active-Matrix Display
§ Override of Programmed Feedrate and Rapid With Graphical Indicator
§ Polycarbonate Sealed Membrane with LED Status Lights
§ Gasket Sealed Enclosures
§ Servo Motors 280 in-oz Torque

FEATURES OF SM-2 SOFTWARE:
§ Windows Operation System
§ Auto Geometry Engine Makes Calculations For You While You Program
§ Automatic Diameter Cutter Compensation
§ Two Axis Circular Interpolation
§ Rotate
§ Look – Program Graphics With A Single Button Push
§ Linear Interpolation
§ Six Modes of Operation
§ Color Graphics With Adjustable Views
§ Tool Length Offset With Modifiers
§ Advanced Diagnostic Routines
§ Jog and Powerfeed in DRO Mode
§ Automatic Return to ABS Zero
§ Incremental and Absolute Position Readout
§ Inch / MM Selectable
§ Teach – In Of Manual Moves
§ Alpha-numeric Program Names
§ Scaling Of Print Data
§ Event Comments
§ Selectable Tool Path or Part Geometry Programming
§ Convenient Canned Cycles For All Geometry
§ Circular Rectangle or Irregular Pockets Islands and Profiles
§ Helix and Thread Milling Routines
§ Subroutine and Copy of Programmed Events Displayed
§ Mirror With Selectable Cutting Order
§ List Step – Graphics with Programmed Events
§ Conrad – One Input For Automatic Corner Radius
§ Incremental and Absolute Programming
§ Program Diagnostics

FEATURES OF SM-2 SOFTWARE CONT.
§ Cad/Cam Interface
§ Math Helps With Prompted Graphical Interface
§ Tool Stepover Adjustable For Pocket Routines
§ Selectable Ramp Or Plunge Cutter Entry
§ Spread Sheet Editing
§ Global Data Change
§ Clipboard to Copy Events Between Programs
§ Trial Run
§ Real Time Run Graphics With Tool Icon
§ Access to Networked Devices
§ Automatic File Back Up Routine
§ Program Converters

Accessories Included:

TORQUE RITE POWER DRAW BAR
