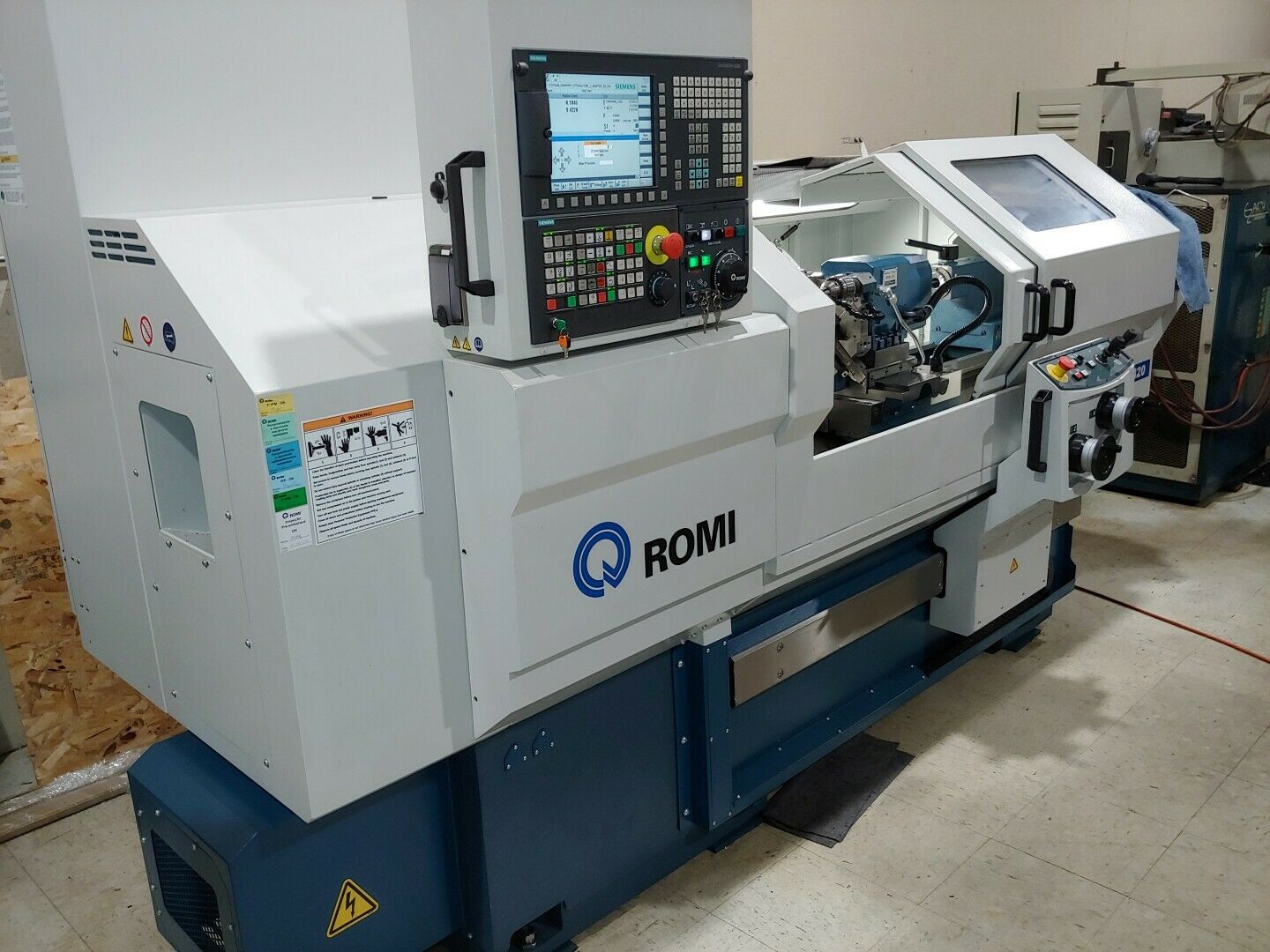

Used 2017 Romi Combination Manual/CNC Turning Center Lathe Siemens Control 16×39
Condition: Used
“Machine is in MINT condition with very little use. Can be seen under power as needed.”
Specifications:
Control Siemens Sinumerik 828D
Centers Height …………………. 8.5”
Distance Between Centers …… 39”
Swing Over Bed ……………… 169”
Swing Over Cross Slide …….. 7.9”
X-Axis Travel ………………….. 8.7”
Z-Axis Travel ……………………. 42”
Bed Width ………………………… 12”
Bed Height …………………….. 13.8”
Spindle Nose ……………………A2-6
Spindle Horse Power … 12.5 HP Continuous
Thru Hole ………………………. 2.56”
Chuck Size ……….. 8”
Spindle Speeds ……. 0-3000 RPM
Rapids X andamp; Z …………….. 394 IPM
Turret Postions ……………………… 8
Max Quill Stroke ………………. 4.7”
Quill Diameter …………………. 2.4”
Quill Taper Hole …………………… 4
Approximate Dimensions… 122” x 49” x 64”H
Approximate Weight … 5600 Lbs.
Electronics … 200-480VCA Power Supply
Equipped With:
10.4” LCD Color Monitor
Manual andamp; CNC Mode
Conversational Programming SHOPTURN
8” 3-Jaw Chuck
8-Position Turret
2-Electric Hand Wheels
Tailstock With Adjustable Quill
Spindle Orientation
Coolant Pump Kit
Rigid Tapping
User-Created Macros
Thread Repair
Wired/Interface For Chip Conveyor
Advanced Intuitive Programming
USB Ethernet andamp; Compact Flash Ports
CE Fully Enclosed Splash Guard
3 MB Program Memory
Miscellaneous Tool Holders
