13612 Ercolina 3” Semi-Automatic Mandrel Bender Model TM-76 – Excellent Condit.

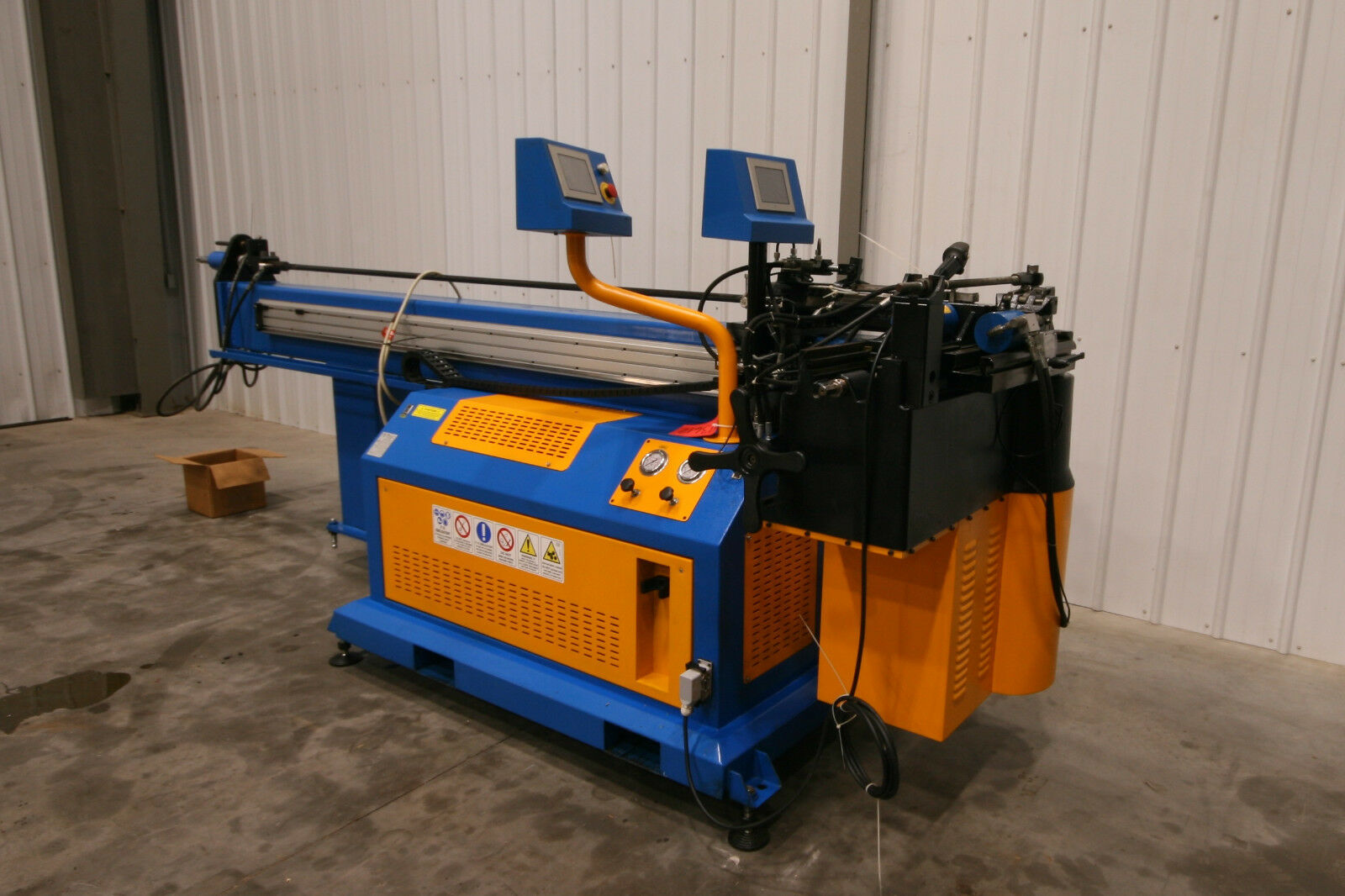

Ercolina 3” Semi-Automatic Mandrel Bender Model TM-76

Specifications:

• Mild steel tube capacity 3? (.083 wall)
• Stainless tube capacity 3? (.065 wall)
• Square tube capacity 2.5? (.065 wall)
• Maximum bend radius 10?
• Bend to CLR as small as 1.5D
• Accepts center line bend radius to 10?
• Programmable bend angle
• USB for unlimited storage of bend programs material library and job information
• Interactive touch screen displays absolute (ABS) and incremental (INC) positioning with inch or metric readout
• Variable bending speed to 4 RPM with auto work sensing
• Individual material springback setting for every bend angle
• Programmable mandrel positioning with anticipated mandrel retraction
• Reference display of Y andamp; B axis to assist set-up
• Y – Feeding manual with adjustable stops
• B – Feeding manual with adjustable stops
• C – NC programmable bend angle
Bender is equipped with a 10’ Mandrel.
