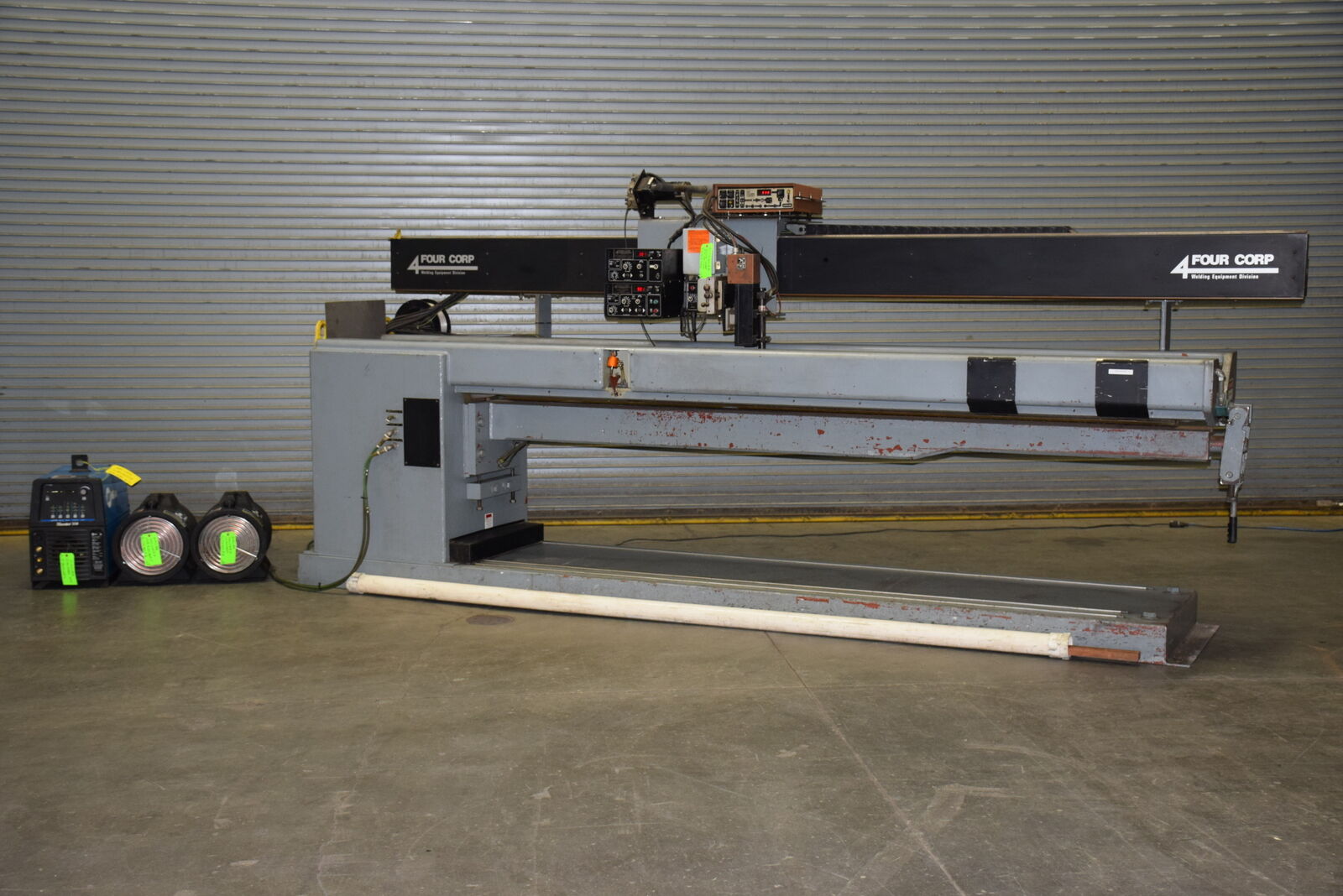

1/4” X 120” Fixed Height Seam Welding System With Miller
Maxstar 350 (2) Miller Coolmate 4 Water Circulator Cyclomatic Avc-3 Weld Craft
Machine Torch Four Corp Cold Wire Feeder andamp; 6” Actuator.
General Specifications
Material Thickness Capacity: .040”-.375”
Shipping Dimensions: 16’ Long X 4’ Wide X 7’ High
Shipping Weight: 7000 Lbs.
Internal External And Flat Sheet Capabilities.
Welding Length Capacity: 120”
Clamping Length Capacity: 124”
(External) Diameter Capacity (Can Be Increased W/ Riser):
9”-29”
(Internal) Minimum Diameter Capacity (Unlimited Maximum
Capacity When Externally Supported): 52”
Features:
3” Wide Aluminum Fingers W/ Copper Tips
Four Corp Model Vsc 15-3 Rack andamp; Pinion Variable Speed
Carriage (0-100 Ipm)
Precision Round Ways For Smooth Travel
4” Horizontal Torch Adjuster
Water Cooled Mandrel
Front andamp; Rear Tape Switches For Part Clamping
2 Ea. Gas Purged Back Up Bar’s (One Is Currently Installed
For Flat Sheet Applications)
Cable Track For Cable Management
Pneumatic Plate Alignment Device
Welding Equipment:
Miller Maxstar 350
(2) Miller Coolmate 4 Water Circulator
Cyclomatic Avc-3
Weld Craft Machine Torch
Four Corp Cold Wire Feeder andamp; 6” Actuator
Includes: Miller Maxstar 350 (2) Miller Coolmate 4 Water
Circulator Cyclomatic Avc-3 Weld Craft Machine Torch Four Corp Cold Wire
Feeder andamp; 6” Actuator.
