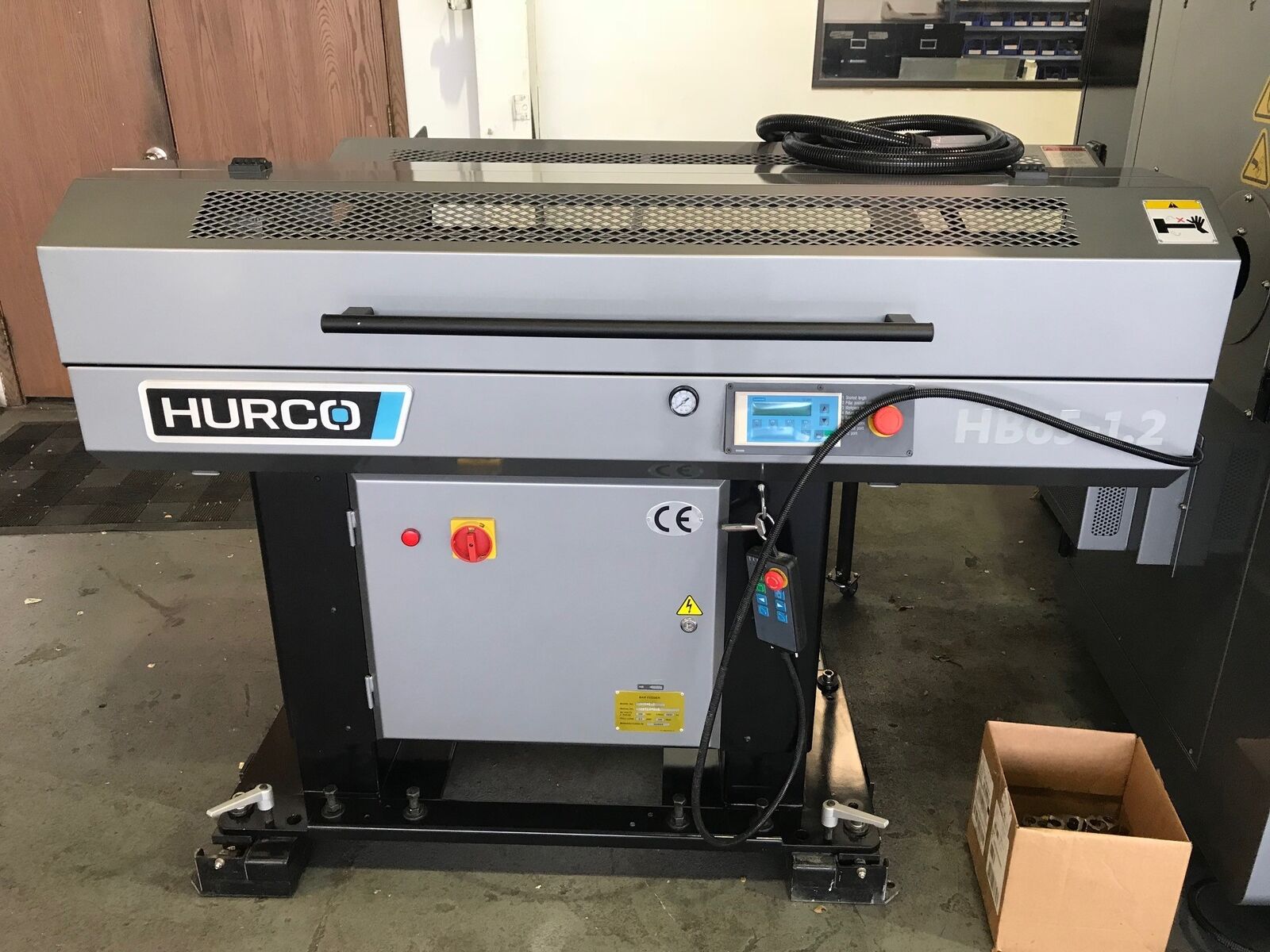

12’ X 13.4 Capacity Cnc Turning Center With Hurco Winmax Single Screen Control Hb65-1.2 Bar Feeder With Siemens Control Pendant Control 1/4” – 2.5” Bar Diameter 47.2” Max Bar Length 6” 3 Jaw Hydraulic Chuck With Hardened Jaws Hydraulic Collet Chuck Dxf File Transfer Software Ultimonitor Rigid Tapping Renishaw Presetter Tailstock Live Center Air And Coolant Guns Parts Catcher Chip Conveyor Recirculating Coolant Usb Ports Rj45 Port Approximately 400 Hours On The Machine!
General Specifications
Max Turning Diameter: 12.4”
Max Turning Length: 13.4”
Max Bar Capacity: 1.77”
Swing Over Bed: 15.94”
Swing Over Cross Slide: 9.45”
Distance Between Centers: 15.8”
X Axis Travel: 7”
Z Axis Travel: 14”
Rapid Traverse X Axis: 750 Ipm
Rapid Traverse Z Axis: 945 Ipm
Spindle Nose: A2-5
Spindle Bore: 2.2”
Spindle Speed: 0 – 6000 Rpm
Spindle Motor: 17.5 H.P.
Turret Capacity: 12 Stations (Hydraulic)
Turret Index Time: 0.5 Seconds
Voltage: 220 Volt 3 Phase
Dimensions: 82” X 60” X 77”
Weight: 7600 Lbs.
Includes: Hurco Winmax Single Screen Control With 12” Color Lcd 2 Gb Ram 65 Gb Hard Drive And 2 Ghz Dual Core Intel Processor (Optional Lathe Package Includes Touch Screen 3d Verification Graphics Real Time Tool Display Isnc Nc Macro Package Keyboard Assembly And Stylus) Hb65-1.2 Bar Feeder With Siemens Control Pendant Control 3 Jaw Hydraulic Chuck With Hardened Jaws Hydraulic Collet Chuck Dxf File Transfer Software Ultimonitor Rigid Tapping Renishaw Presetter Tailstock Live Center Air And Coolant Guns Parts Catcher Chip Conveyor Recirculating Coolant Usb Ports Rj45 Port Approximately 400 Hours On The Machine!
