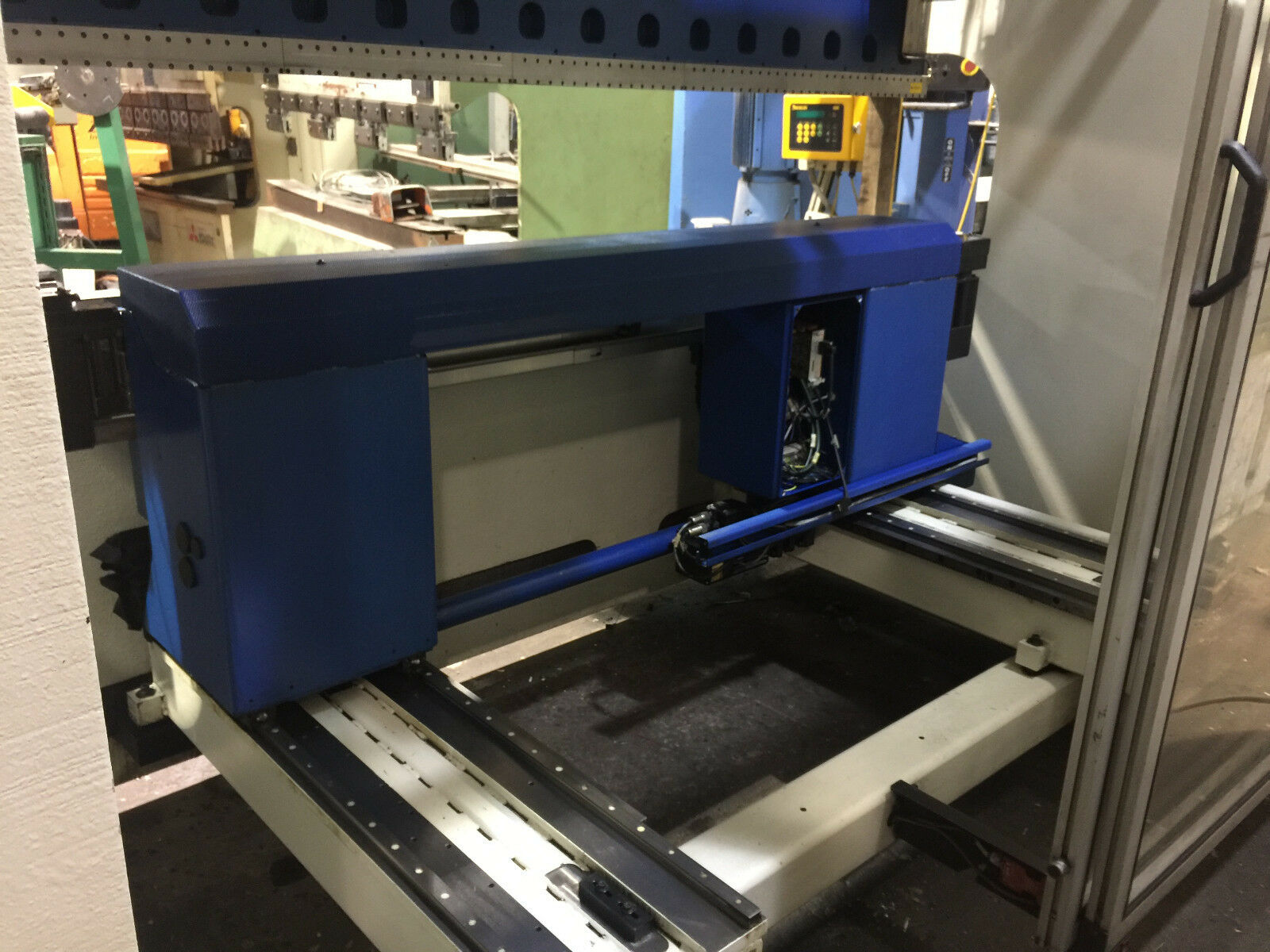

Pre Owned Trumpf Model V130 144 Ton Hydraulic Press Brake
General Specifications
Capacity 144 TONS
Overall Length of Bed andamp; Ram 120’
Distance Between Housings 106”
Stroke 8.5”
Open Height 19”
Closed Height 10.5”
Throat Clearance 16”
Maximum Inclination of am 0.4”
Speeds
Approach 472” Per Min
Form 2-24” Per Min
Return 320” Per Min
Distance Floor to Top of Bed 34”
Width at Top of Bed 4.75”
Operating Height 41”
Oil Capacity 66 US GALLONS
Main Motor Horsepower 25 230/460/3/60
