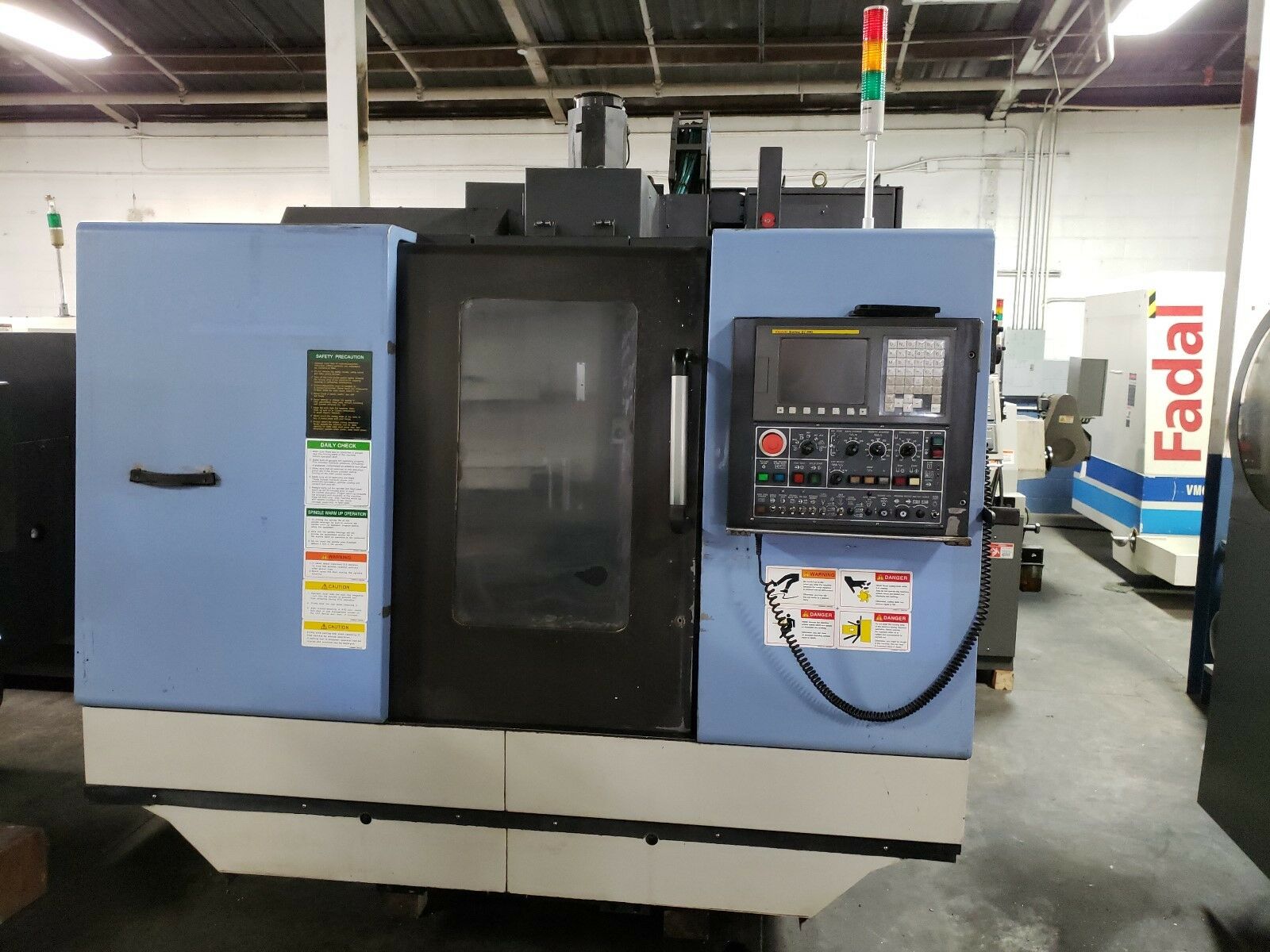

Doosan MV-3016LD CNC Vertical Machining Center

Doosan MV-3016LD CNC Vertical Machining Center

New 2007

Equipped With:
Fanuc 0i MC Control
Through Spindle Coolant
LNS Turbo Conveyor With Variable Speed
Midaco Series 30 Pallet Changer (2-Pallet)
Remote Jog Handle

General Specifications:
Table Size: 36.2″X 16.9″
X-Axis Travel: 30″
Y-Axis Travel: 16.1″
Z-Axis Travel: 20.1″
Spindle To Table: 5.9″ – 36.2″
Spindle Motor: 15 HP
Spindle Speed: 8000 RPM
Spindle Taper: CAT 40
Tool Capacity: 20 (Carousel)

** Spindle Replaced May 2017
** As Of September 2018 – Cutting Time 5495 Hours

Machine: 90″ x 98″ x 100″ 10000 lbs
Chip Conveyor: 126″ x 96″ x 68″ 2500 lbs
Pallet Changer: 115″ x 53″ x 32″ 750 lbs
