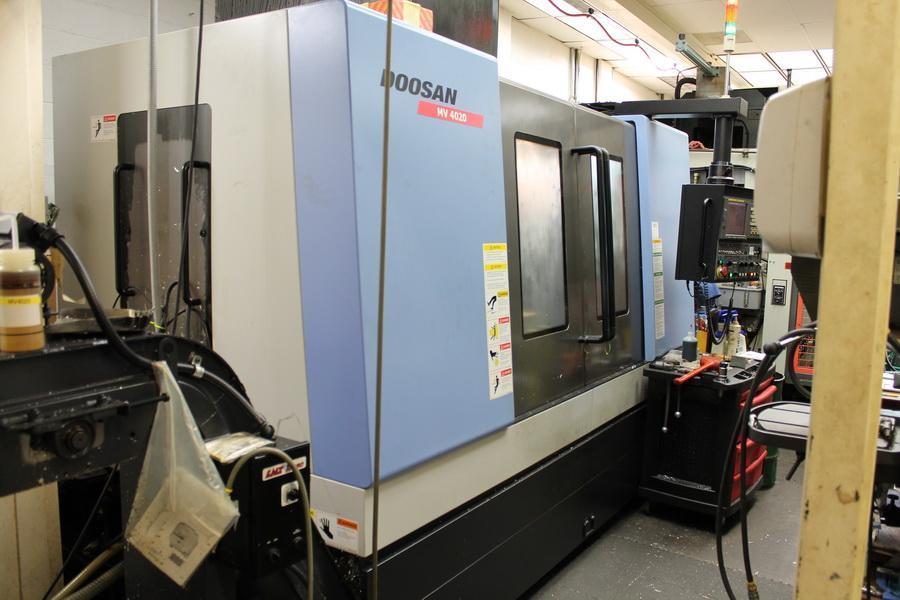

Doosan MV4020 (2008) – 40″ x 20″ 24″ Travel 47″x 20″ Table

Make: Doosan
Model: MV4020
Year: 2008

Technical Details:

X-Axis Travels 40.1″
Y-Axis Travels 20.1″
Z-Axis Travels 24.6″
Spindle Nose to Table (Min.-Max.) 5.9″ – 30.5″
Spindle Center to Column 20.5″
Table Length 47.2″
Table Width 19.7″
Max Weight on Table 1760 Lbs
Spindle Taper Size 40
Speed Range 60-8000 RPM
Spindle Power 20 HP
Rapid X andamp; Y 1181″ IPM
Rapid Z 945″ IPM
Cutting Feedrate .04″ – 472″ IPM
Automatic Tool Changer 40 Taper
Capacity 30
Max Tool Weight 18 lbs
Max Tool Length 13″
Max Tool Dia. 3.5″
Air Required 100 PSI 4 SCFM
Power 205-235v/66 FLA/3- Phase 36Kva
Equipped With
Big Plus Spindle
Royal Filtermist System
Power 20 HP High Torque Spindle Motor
Spindle Orientation
Custom Micro B (User Definable)
Memory Random Double Arm (30 ATC)
Portable Manual Pulse Generator
Fast 1 181 IPM Rapid Traverse Rate
Base Flush Chip Disposal
Flood Coolant with Large Separate Coolant Tank
Work Light

ALL SPECIFICATIONS ARE ASSUMED TO BE CORRECT BUT MUST BE CONFIRMED BY PURCHASING ENTITY.

Additional Information:

Make Doosan
Model MV4020
Year 2008
Control Fanuc 21 iM
