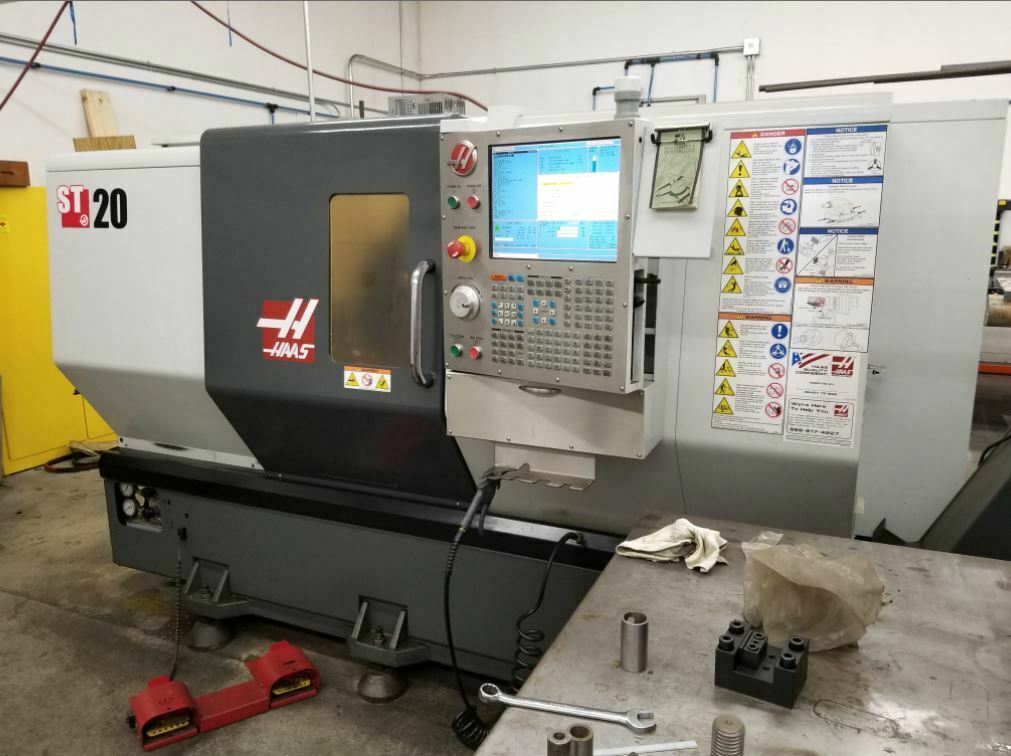

Model:
ST-20T
Distance Between Centers: 10” – 20”
Swing Over Bed: 31”
Hole Thru Spindle: 2
Highest Spindle Speed (RPM): 3501 – 4000
Type: CNC Make: Haas
GENERAL SPECIFICATIONS:
DATE OF MANUFACTURE 2010
SWING OVER FRONT APRON 31.8″
SWING OVER CROSS SLIDE 20.8″
MAX. CUTTING DIAMETER 15″
MAX CUTTING LENGTH 21″
BAR CAPACITY 2″
X AXIS TRAVEL 9.3″
Z AXIS TRAVEL 21″
RAPID TRAVERSE ALL AXES 945 IPM
SPINDLE SPEEDS 4000 RPM
SPINDLE NOSE A2-6
SPINDLE BORE 3.5″
SPINDLE MOTOR 20 HP
TURRET CAPACITY 12 STATIONS
TAILSTOCK STROKE 21″
TAILSTOCK TAPER MT #4
APPROX. DIMENSION 160″ x 78″ x 81″
MACHINE WEIGHT 12300 LBS
EQUIPPED WITH:
HAAS 64-BIT CNC CONTROL WITH 14″ LCD SCREEN
RS-232C PORT andamp; USB PORT FOR DNC OPERATION
8.00″ 3-JAW HYDRAULIC HOLLOW CHUCK WITH JAWS
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
RIGHT SIDE DISCHARGE LINK BELT CHIP CONVEYOR
HYDRAULIC TAILSTOCK TOOL EYE / PRESETTER
FULLY ENCLOSED SPLASH andamp; SAFETY GUARDING
STANDARD COOLANT SYSTEM WITH TANK andamp; PUMP
FULL COMPLIMENT OF TOOLING ALL MANUALS
***NO PRODUCTION RUN 600 HOURS OR LESS***
