Condition: Used

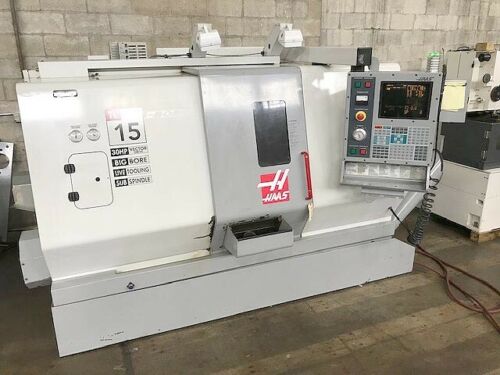

“Under Power and Running on Our Floor”
EQUIPPED WITH:
HAAS CNC Control Quick Code Programming RS-232 Port Floppy Drive
Big Bore Option Live Tooling Full Contouring C-Axis Spindle
Sub-Spindle 10″ Kitagawa B-210 Power 3-Jaw Chuck on the Main Spindle
5.5″ 3-Jaw Chuck on the Sub-Spindle 30 HP Vector Drive Spindle
Tool Presetter Parts Catcher Tool Offsets 12 Position ID/OD Turret
Haas Servo Bar 300 Bar Feeder Rigid Tap Heavy Duty Bed Construction
Centralized Lubrication System Load Monitor Chip Auger Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Saddle………………………………. 21.65″
Max Turning Diameter……………………………….. 10″
Max Swing Over Cross Slide………………………….. 9.5″
Max Work Length……………………………………. 17.5″
Distance Between Main and Sub Spindle………………… 22.11″
Cross Travel (X-Axis)………………………………. 7.5″
Longitudinal Travel (Z-Axis)………………………… 17.5″
Sub-Spindle Slide (B-Axis)………………………….. 17.9″
C Axis……………………………………………. 360000 Pos.
Rapid Traverse Rate ……………………………….. 710 IPM
Bar Capacity………………………………………. 3″
Spindle Nose………………………………………. A2-6
Spindle Speed Range………………………………… 45-3400 RPM
Sub-Spindle Speed Range…………………………….. 40-4000 RPM
Live Tooling Speeds………………………………… 30-3000 RPM
Spindle Drive Motor………………………………… 30 HP
Live Tool Motor……………………………………. 5 HP
Approximate Machine Dimension……………………….. 102″ x 67″
Approximate Machine Height………………………….. 80″
Approximate Machine Weight………………………….. 11000 LBS
CONDITION:
From a small 1 shift shop. Appears to be in Excellent Condition !
