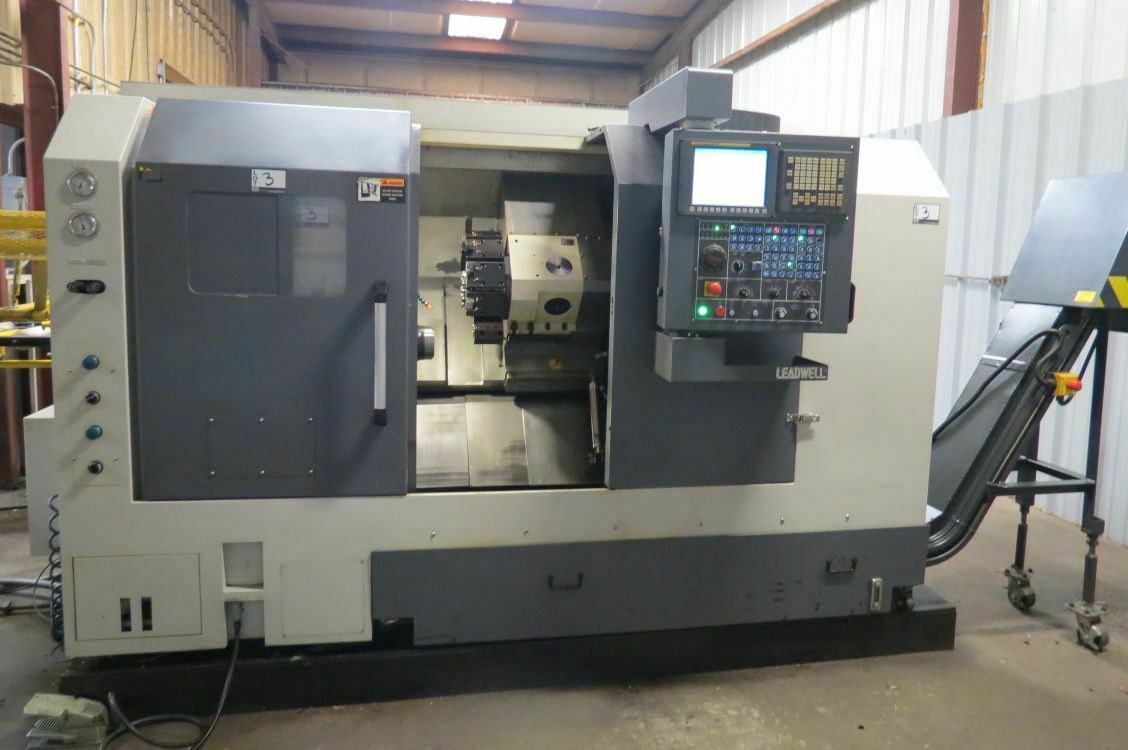

Leadwell T-7 CNC Turning Center

Leadwell T-7 CNC Turning Center

Condition: Used
“Very good condition as removed from service”

Specifications:
Swing: 20.4″
Max. turning diameter: 13.8″
Max. turning length: 22″
Nominal chuck diameter: 8″
Travels – X axis: 7.7″
– Z axis: 23.6″
Spindle bore: 2.44″
Bar capacity: 2″
Spindle speeds: 45 – 4500 RPM
Spindle motor: 20 HP
Spindle nose: A2-6
Machine dimensions: 110″ x 62″ x 76″H
Approx. machine weight: 10000 lbs

Equipped with:
Fanuc 0i-TD CNC control
C axis andamp; Live tooling (NO TOOLS INCLUDED)
Collet chuck
Tailstock
Chip conveyor
