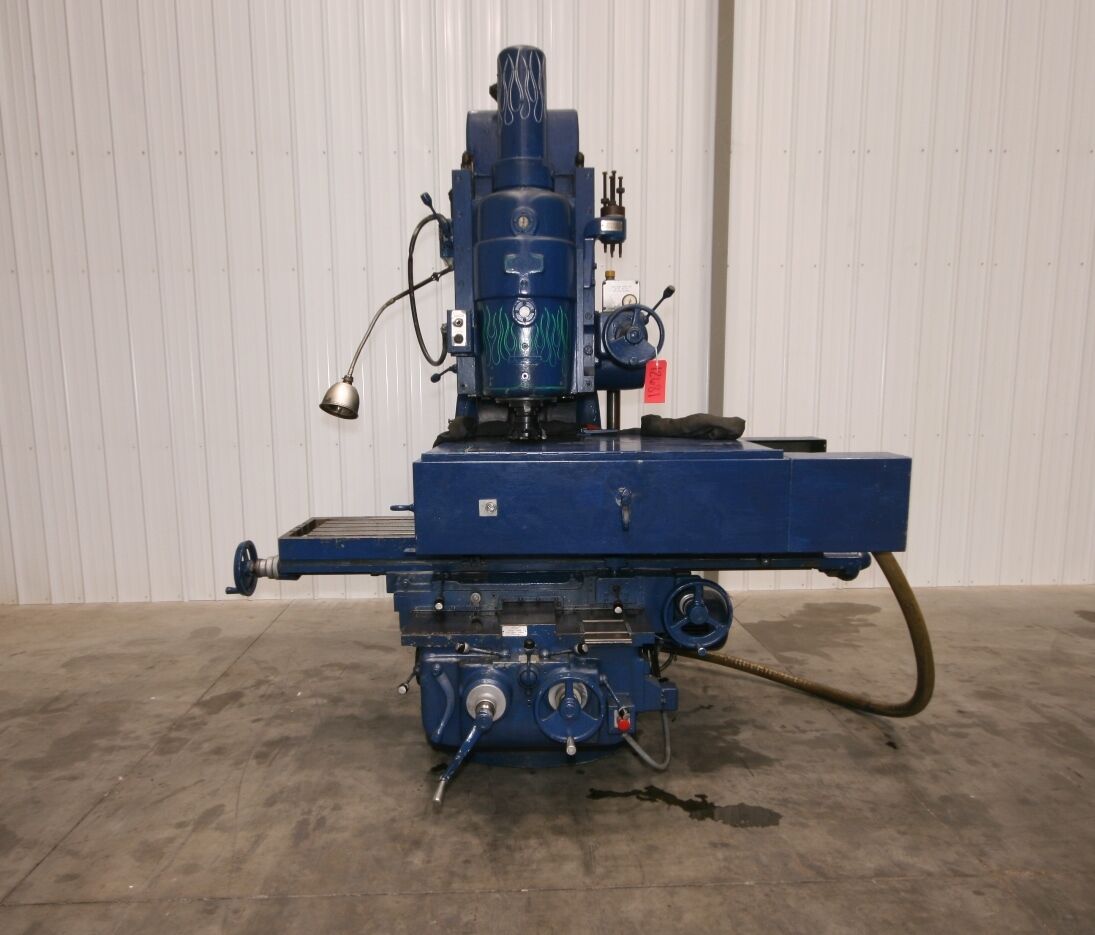

12681 Cincinnati Model 420-18 Vertical High Power Mill 18” x 80” Table

Cincinnati Model 420-18 Vertical High Power Mill 18” x 80” Table

Specifications:
Table Size 80” x 18”
T-Slots Number andamp; Size 3 13/16”
Distance between T-Slots 3 1/4”
Longitudinal 42”
Cross 16”
Vertical 16”
Spindle Nose to Top of Table Max. 22 3/4”
Spindle Nose to Top of Table Min. 0”
Vertical Head Movement 7”
Standard Milling Machine Spindle Nose No. 50
Diameter of Nose 5 1/16”
Diameter of Hole for Draw -in Bolt 1 1/8”
Speed (24) 16-1600 RPM
Number of Feeds 32
Longitudinal per Min 3/8” – 90”
Cross per Minute 3/8” – 90”
Vertical per Minute 3/32” – 22 1/2”
Vertical Head per Minute 3/16” – 45”
Longitudinal and Cross Feeds per Minute 3/8” – 90”
Power Rapid Traverse – Longitudinal per min 150”
Power Rapid Traverse – Cross per Min 150”
Power Rapid Traverse – Vertical per Min 37 1/2”
Power Rapid Traverse – Vertical Head per Min 75”
Spindle Drive Motor 20 HP
Feed Drive Motor 7 1/2 HP
Coolant Pump Capacity 5 Gallons per Min
Dimensions 135” x 140 1/2”
Weight 14275 lbs.
