Miller XR™-Aluma Pro A Gun 300000 (Air-Cooled)
Combine the Millermatic® 252 OR 350 with the XR™ pull gun and you get a wire feeding system that delivers optimum results for MIG welding with aluminum and other soft alloy wires. The XR™ system offers the versatility to handle everything from light-gauge to heavy-plate applications.
The new XR™-Aluma Pro A Gun has been designed to maximize comfort and convenience and will plug directly into your Millermatic® 252 OR 350 or the XR™ Push-Pull module. The XR™-Aluma Pro Gun is available in 15 25 or 35 ft length.
Applications:
Sign Manufacturing
Typical Aluminum Fabrication
Shipbuilding
Truck and Trailer Manufacturing
Railroad
Features:
The XR™-Aluma-Pro air-cooled gun offers 300 amps—more amperage than the competition can handle.
Aluminum-series-specific tension setting ensures smooth wire feeding performance with 4000 or 5000 series aluminum wires.
At 900 inches per minute this gun will feed wire faster than any of its predecessors.
3-3/4 turn potentiometer provides better resolution when selecting the right wire speed for the job. The recessed WFS (wire feed speed) control offers durability yet is easy to use while wearing welding gloves.
The easy-to-rotate self-seating head tube allows for better access into tight spots preventing leaks and providing excellent current transfer.
The XR-Aluma-Pro trigger has a wiping action to keep contact points clean for a more reliable electrical connection.
Trigger hold reduces fatigue by allowing operator to weld without holding trigger. (Feature available when paired with XR™-Control.)
Isolated common knurled drive roll helps reduce wear reducing downtime and cost.
Replaceable feed cable liner is designed to provide consistent arc performance. It also reduces parts cost and service time by allowing a simple means of removing and replacing liner and not the complete feed cable.
Serviceability. This gun features a full-length Velcro®-seamed leather jacket with integrated strain reliefs for easy cable maintenance and protection. The gun also features quick connectors between the control cable and electrical components (trigger motor potentiometer).
Head tubes are standard Roughneck® FasTip™ and are Bernard® Centerfire™ compatible. Guns are warranted for 1 year parts and labor.

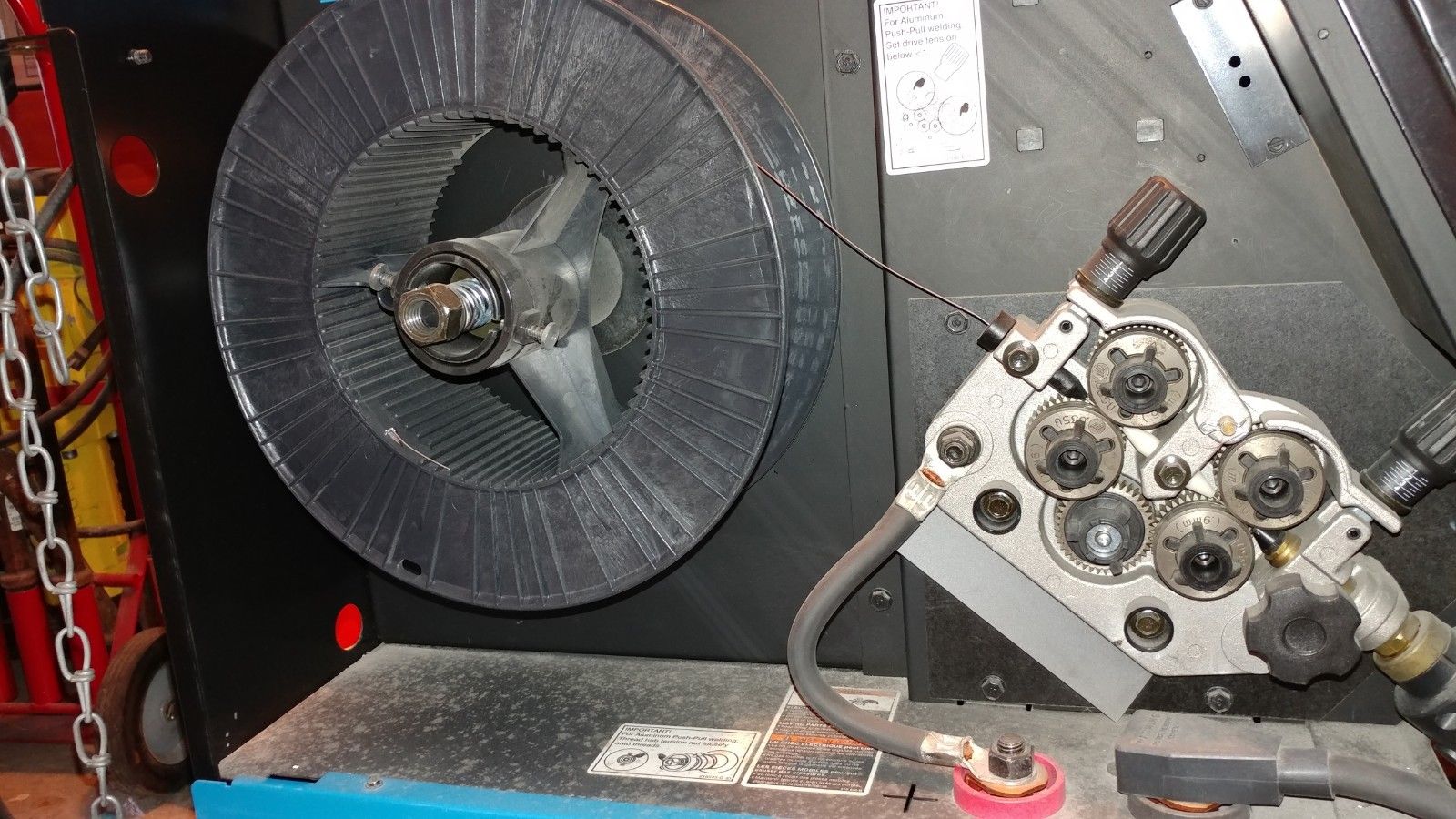

Easy access to drive assembly and removable head tube reduces service time. Pressure release lever allows drive rolls to be held open for wire changeover
Comes complete with:
Drive roll for .030 thru .061 diameter wire
Idler roll
Inlet guide
The Millermatic® 350P MIG Welder is the first single or three-phase power Millermatic that welds material from 22 gauge to 1/2 in thick in a single pass. Perfect for fabrication manufacturing maintenance and repairNow on top of legendary Millermatic® simplicity the welder inverter technology and pulsed-MIG welding capability. That opens the door to even better weld quality and improved productivity on all metals including thin-gauge aluminum and stainless steel.
Processes:
MIG (GMAW)
Pulsed MIG (GMAW-P)
Flux Cored (FCAW)
