BRAND NEW!
THIS SUPER 200P WILL WELD ALUMINUM
AC/DC WELDER
WITH PULSE andamp;
COMES WITH A FREE
FOOT PEDAL

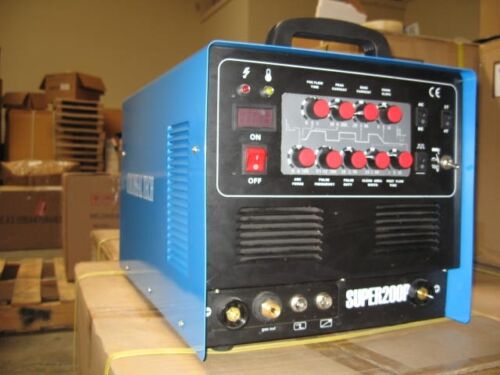

SUPER 200P
50A Plasma Cutter 200A Tig Stick Welder
Plasma Cutter TIG MMA
220V
Plasma Cutter 50A
Tig Welder 200A
Arc Welder 180A
Three functions in one machine
Tig Welding MMA Welding and
Air Plasma Cutter at a great price
Super 200P has 9
regulator knobs andamp; is
the perfect unit for
welding aluminum andamp; steel.
You can weld in either AC
or DC mode with AC mode
you can weld aluminum
copper brass titanium etc.
and in DC mode you can
weld steel iron stainless etc.
Unit is built with
thermostatic protection
over-voltage protection
over-current protection
under-voltage protection
andamp; pedal control interface
for safe operation.
Unit has a digital display andamp;
is a pulse unit so you get
much cleaner welds.
1YEAR WARRANTY ON
PARTS AND LABOR!!!!
Specifications:
208/220vac 50/60HZ Input Single Phase 1PH
50amp cut draws 25A
220V No Load Voltage
Insulation Class: B
Power Efficiency: 85%
Power Factor: 0.95
Duty Cycle: 60%
Plasma Cutting:
3″ Per minute @ 1″ Steel (Severance Cut)
7″ Per minute @ 3/4″ Thick Steel
17″ Per minute @ 1/2″ Quality Cut
Power Factor 0.93
100% Duty cycle (cut time) at 40amp cut setting
60% Duty cycle at 50amp cut setting
Air requirements: 50-75psi @ 3.5cfm
You will have to provide 220V Plug and air supply.
Unit Contains Toshiba Mosfets
TIG Welding
Input Current 20(A)
Rated Output Current 180 Amps
NO Load Voltage: 56V
Working Voltage: 17.2V
Duty Cycle: 60% at 180 Amps
Arc Welding
No Load Voltage: 56V
Duty Cycle: 60% at 180 Amps
Working Voltage: 26.4 Volts
Input Current: 29 (A)
Rated Output Current: 160 (A)
Current Range: 10-180 Amps
Arc-Leading: Touch
What is Included?
SUPER 200P 220V 50A Plasma Cutter 200A Tig Stick Welder
Cutting Torch
Ground Clamp
Air Regulator with Bracket
Air Hose
Welding Torch
Welding Cable
Welding Holder
Foot Pedal
