Brand:
Sharp
Model:
LMV-50
Custom Bundle: Yes
Bundle Description: Includes Phase II 6″ indexing head stand and mat
Like New Condition — Very low hours — still shiny
Bundle includes:

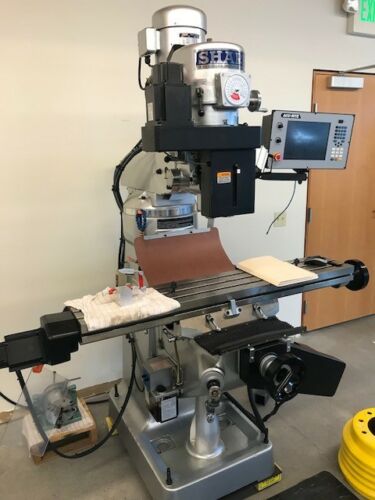

Sharp LMV-50 Mill (2011)
Acu-Rite 3500i controller
Phase II – 6″ indexing head ($1157.00 value)
Standing mat
Mill stand
Sharp Mill Features:
Head
To dissipate heat in the 3 HP motor driven head a pair of high output fans is installed.
The motor shaft and Vari Drive pulleys are dynamically balanced then hard-chromed this allow a vibration free milling even at high-speed
Vari-speed drive system with trouble free sliding motion.
Roller bearings installed for the lower support of the motor shaft to minimize lateral stress.
Besides swiveling 90 degree side to side the head can alsoswivel up and down by virtue of a knuckle joint design.
A matched pair of super-precision ABEC-7 angular contactbearings supports the spindle. This ensures spindle run out of no more than 0.0004”TIR- the best in the industry.
Column Table and Knee
Certified MEEHANITE castings are used for superior rigidity and better dampening of vibrations.
Table and saddle backlash is controlled by a double-nut design that keeps the feed screw in contact with a pair of bronze nut at all times.
The end of the table and saddle are mounted with thrust bearings that pre-load the feed screw eliminating end play for precisely controlled lateral movement.
The end of the table and saddle are mounted with thrust bearings that pre-load the feed screw eliminating end play for precisely controlled lateral movement.
“Bridgeport-style” vertical knee mill
Acu-Rite 3500i Features
A platform that’s two controls in one – Conversational and G-Code.
A whole new way of programming including built-in CAMsoftware that allows you to create complex shapes geometry and tool path all inthe same feature as well as convert DXF files into part programs.
Features
Intuitive touch screen interface
Full alphanumeric touch keyboards
Machinist language canned cycles
3D form help graphics
Large high resolution display
Innovative touchscreen based navigation and data entry
Remote Diagnostics
On screen multi-function calculator
Coarse tool support
Real time draw
Conversational and G-code programming in one control
Interactive part preview (e.g. Touch a line in the part preview and the coinciding block is highlighted (gouge identification)
Solid state flash memory storage
1 Gig of RAM
1 GHz Intel CPU
Windows® compatible off-line system
Easy to learn
Intuitive navigation and programming
2 USB ports
