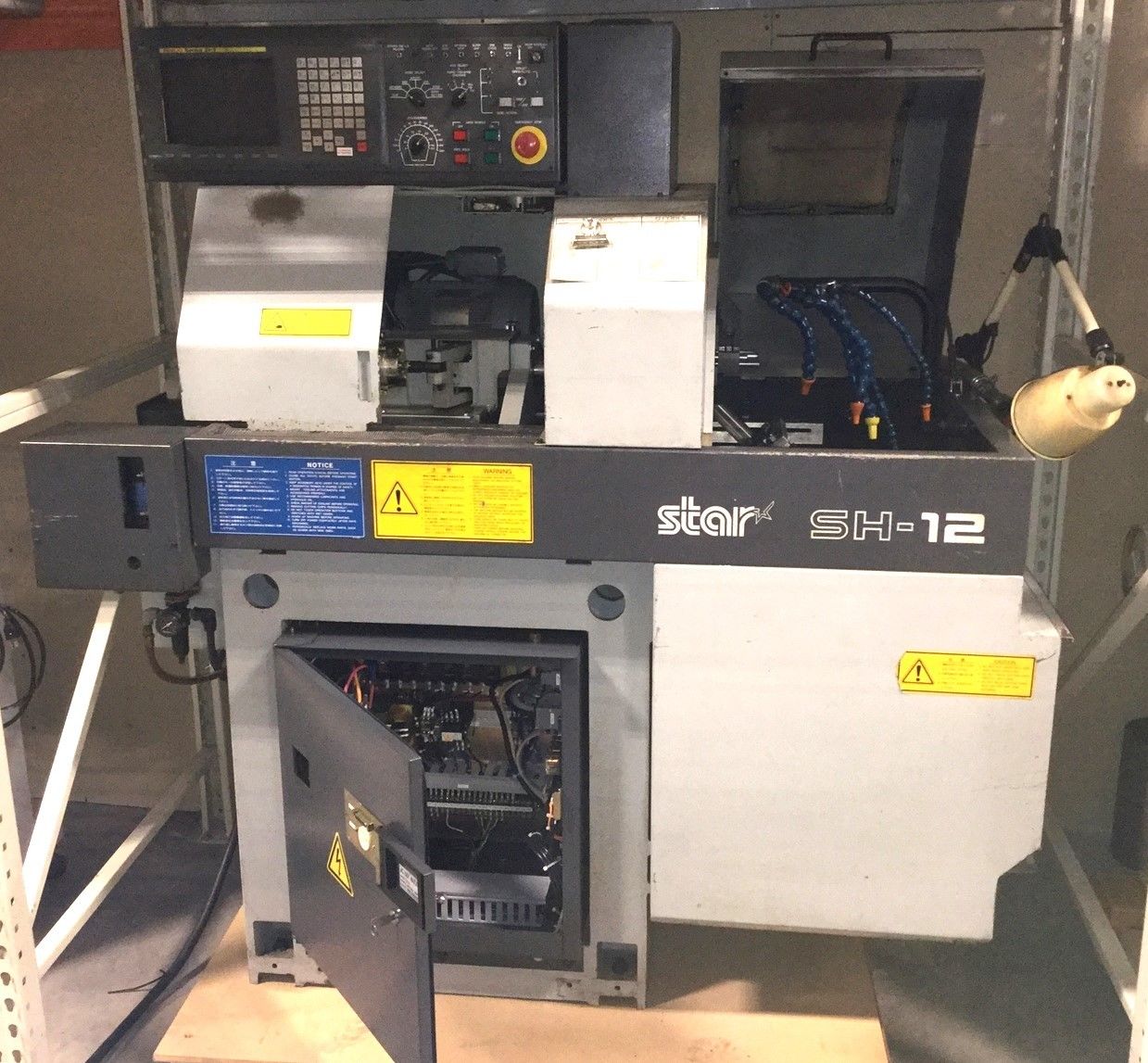

Star SH-12 Swiss Type Auto Lathe CNC Screw Machine Center w/Fanuc Series 21-T 1

Up for bid a Star SH-12 Swiss Type Auto Lathe CNC Screw Machine Center w/Fanuc Series 21-T 1.

These were pulled from production and brought to our facility. These are assumed functional please note alarms below.

-SQ 301 is short circut
-SQ 300 is disconnected

Set of manuals included

Specifications:
Model #: SH-12
More Information:
Used Operational
Sliding Head-Type Automatic Lathe: Suitable for small size precision component processing with high accuracy.
Fanuc 21T CNC Control Some ‘Burn-In’ On Display Not Seen In Pictures.
Parts Catcher Installed
Turning Capacity: 12 mm (1/2″)
Maximum Headstock Stroke: 5.5″
Maximum Drill: 17/64″ (7mm)
Maximum Tapping: M6 P=10
Spindle Speeds 400 – 8000 RPM
Spindle Power: 1.5 kW
Tools: 5 Gang Style (OD) 8 Front Facing (ID)
Tool Shank 10 x 10 x 95mm
RS232C Interface Port
Parts Catcher Coolant Tank andamp; Pump (Separated In Pictures)
Machine Dimensions: Approx. 63″ x 38″ X 66″ H
Coolant Tank Approx. 22.5″ x 36.5″ x 15.5H
Weight Approx. 2500 Lbs.
