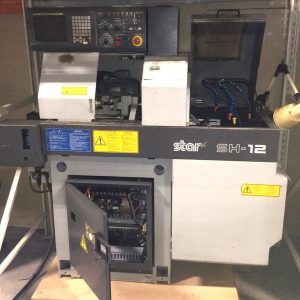

we are selling a Star SH-12 Swiss Type Auto Lathe CNC Screw Machining Center w/21-T Series Fanuc.
Specifications:
Model #: SH-12
More Information:
Used Operational (See Example Pictures For Suggested Set-up With Bar Feed)
Bar Carrier Tubing Not Shippable and Not Included In Sale. Too Long To Ship.
Sliding Head-Type Automatic Lathe: Suitable for small size precision component processing with high accuracy.
Special Feature: Tool Break Monitoring Installed (Positive Contact PCS-100 System)
Fanuc 21T CNC Control Some ‘Burn-In’ On Display Not Seen In Pictures.
Parts Catcher Installed
Turning Capacity: 12 mm (1/2″)
Maximum Headstock Stroke: 5.5″
Maximum Drill: 17/64″ (7mm)
Maximum Tapping: M6 P=10
Spindle Speeds 400 – 8000 RPM
Spindle Power: 1.5 kW
Tools: 5 Gang Style (OD) 8 Front Facing (ID)
Tool Shank 10 x 10 x 95mm
RS232C Interface Port
Parts Catcher Coolant Tank andamp; Pump (Separated In Pictures)
Gravity Full Fed Bar Feed (Separated In Pictures)
Machine Dimensions: Approx. 63″ x 38″ X 66″ H
Approx. Bar Feed 103″ x 32″ x 83.5″H
Coolant Tank Approx. 22.5″ x 36.5″ x 15.5H
Weight Approx. 2500 Lbs.
Due to size and sensitivity of this item it will be shipped freight. Freight deliveries in a residential area or requiring a liftgate truck are subject to additional fees. Contact us for more details.
