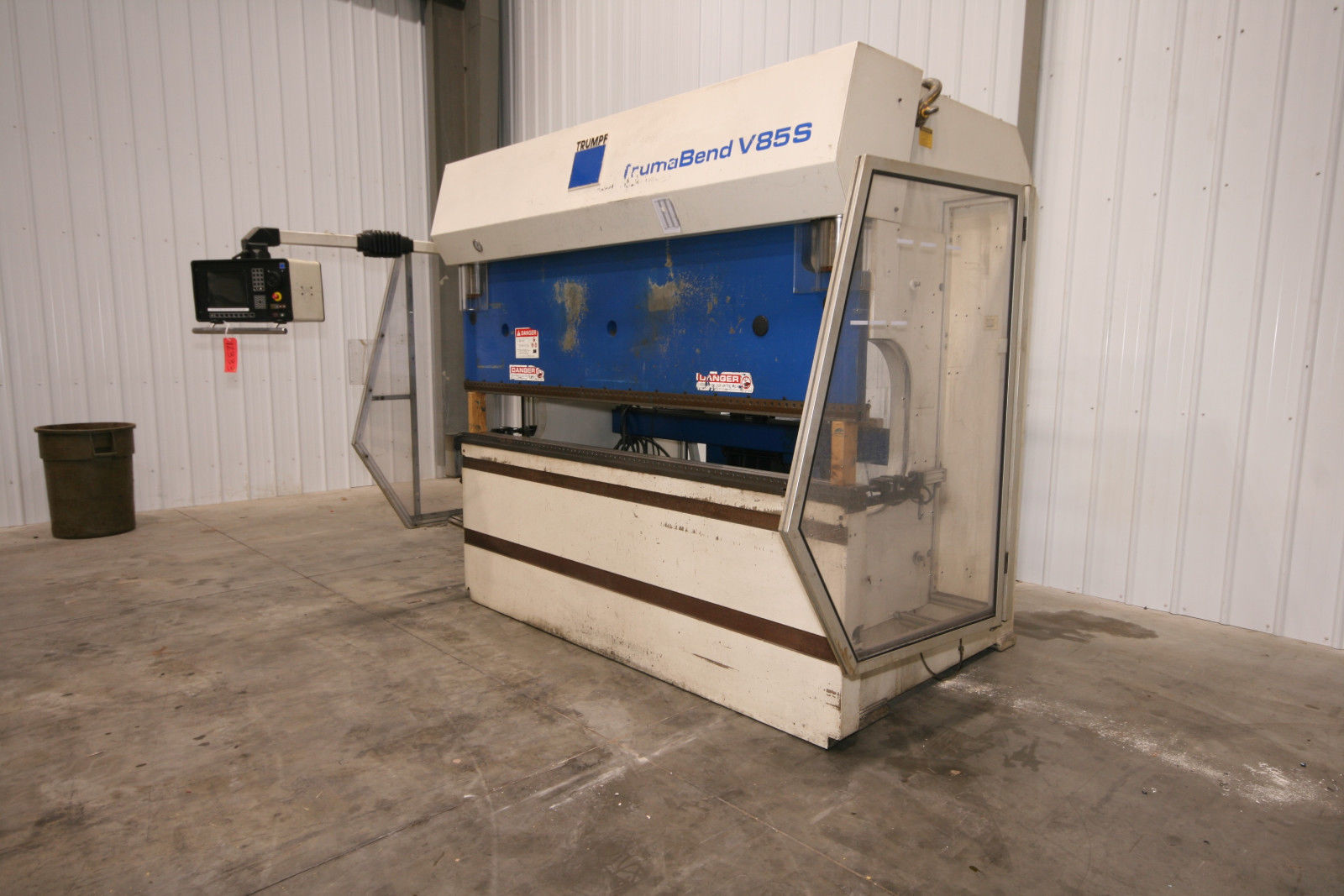

12333 Trumpf 100” x 95 Ton Press Brake Model TrumaBend V85S

Trumpf 100” x 95 Ton Press Brake Model TrumaBend V85S

Asset # 12333
Serial # 884320

Specifications:
Capacity: 96.67 Tons
Stroke: 8.5″
Maximum Bending Length: 100″
Incline of Beam: /- 0.4″
Distance Between Housings: 89″
Width of Bed: 4.75″
Operating Height: 41″
Maximum Distance in X-Axis: 33.5″
X-Axis Travel: 23.6″
X-Axis Max Speed: 1200 IPM
R-Axis Travel: 9.8″
R-Axis Max Speed: 710 IPM
Z-Axis Max Speed: 1900 IPM
Y-Axis Rapid Speed: 472 IPM
Y-Axis Operating Speed: 2 IPM – 24 IPM
Y-Axis Return Speed: 320 IPM
Drive Motor: 15 HP
Approx. Oil Capacity: 53 Gallons
