Ganesh Cyclone 32CS CNC Swiss Turning Lathe

Ganesh Cyclone 32CS CNC Swiss Turning Lathe (Chucker type)

New 2014

CNC Swiss Non-Guide Bushing (Chucker type) Lathe

Main Spindle:
Motor: 10 HP
Max. RPM: 6000
Max. Barstock Diameter: 1.25″
X-Axis: 7.28″
Y-Axis: 19.29″
Z-Axis: 6.50″
Rapid Travel Speed: 1180 IPM
Min. Input Unit: 0.00005″
OD Turning Tool Positions: 6 OD Tools (1/2″ or 12mm)
ID Turning Tool Positions: 5 ID Tools
OD Turning Tool Size: 1/2″ or 12mm
ID Turning Tool Bore Size: 25mm
Spindle Center Height: 38″

Sub Spindle:
Motor: 5 HP Continuous Duty (7.5 HP Peak)
Max. Barstock Diameter: 1.25″
RPM: 6000
X-Axis: 11.53:”
Z-Axis: 11.61″
Min. Input Unit: .00005″
ID Turning Tool Bore Size: 25mm

Live Tooling:
Cross Slide: 4 Cross Slide Live Tools
Front Slide: 3 Front Slide Live Tools
Live Tool Collet Size: ER-20 Collet 1/2″ (13mm) Tool Shank

Capacity
Max. RPM: 4000
Machine Dimensions (Approx.):
Length: 95.28″
Width: 59.05″
Height: 76.18″
Weight: 8360 Lbs.
Coolant Pump: Dual Coolant Pumps (3/4 HP andamp; 1/4 HP)
Lubrication Distribution: Way Lube Distributed at
3-6 CC / 15 Minutes

Equipped with (must be verified by buyer)

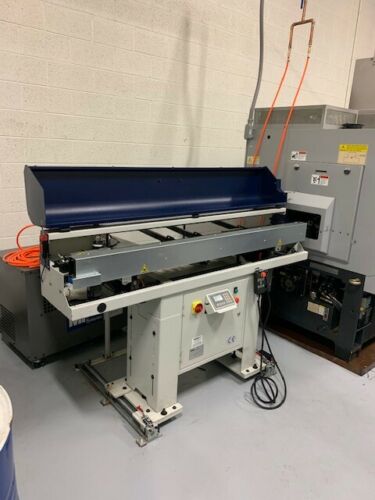

Edge Rebel Short Bar Loader
MP 1000 High Pressure Coolant System
Mist Collector
Parts Catcher andamp; Conveyor
Chip Conveyor
